2012 Ford Taurus AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Service and Repair
Camshaft Position (CMP) Sensor - 3.5L
Removal and Installation

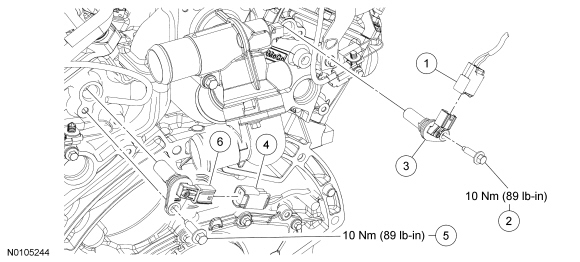

1. Remove the Air Cleaner (ACL) outlet pipe and the ACL (Air Cleaner).

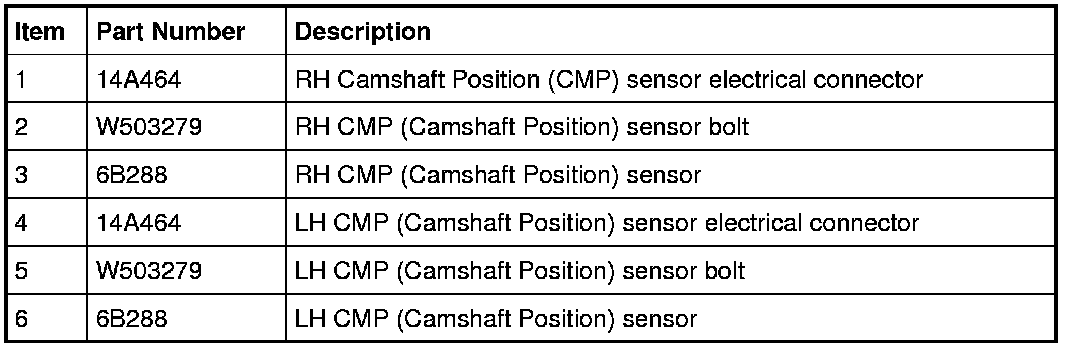

2. Disconnect the Camshaft Position (CMP) sensor electrical connector.
3. Remove the bolt and the CMP (Camshaft Position) sensor.
- To install, tighten to 10 Nm (89 lb-in).

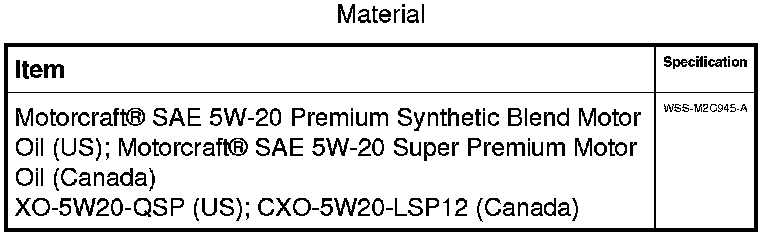

4. NOTE: Lubricate the CMP (Camshaft Position) sensor O-ring seal with clean engine oil.
To install, reverse the removal procedure.
