2012 Ford Escape 4WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Engine Lubrication
Engine Lubrication Components - Exploded View

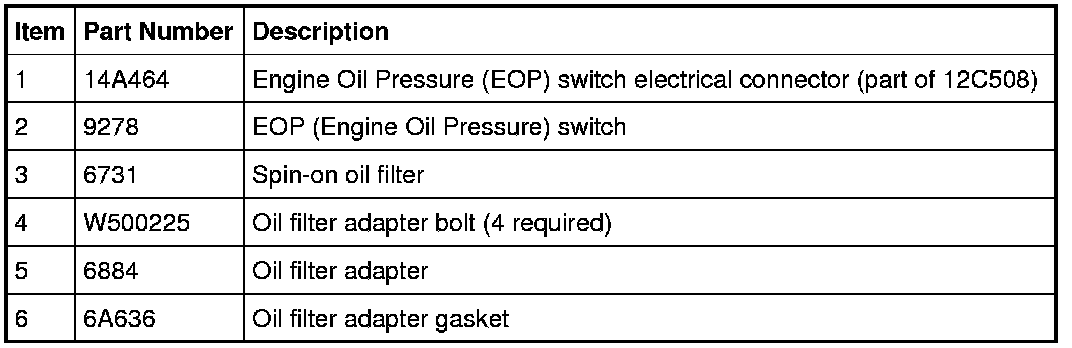

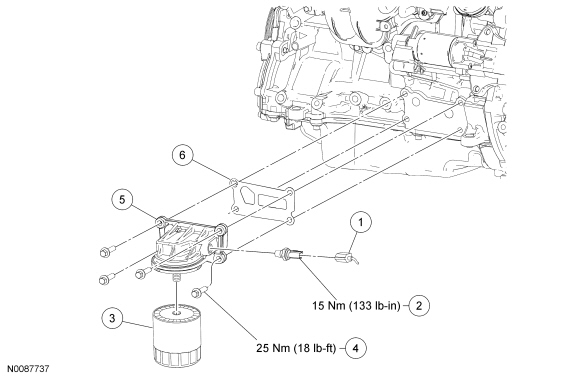

Oil Filter Adapter, Spin-on Oil Filter and Engine Oil Pressure (EOP) Switch

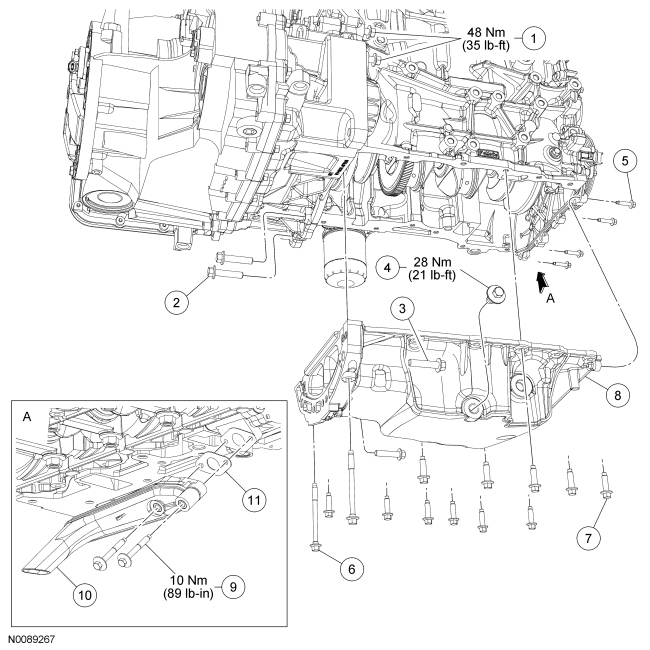

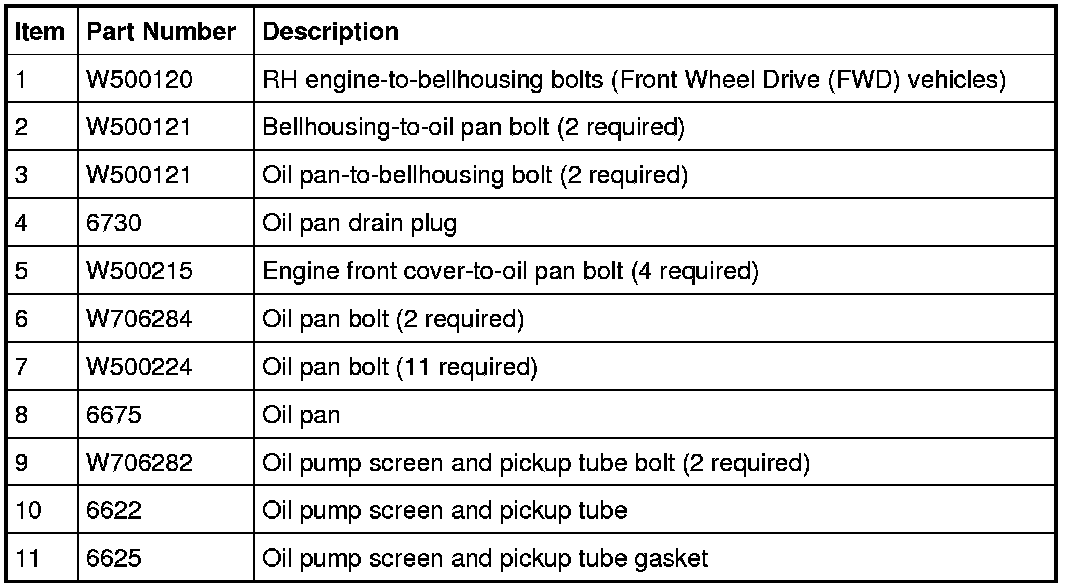

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles
NOTE: Automatic transmission shown, manual transmission similar.

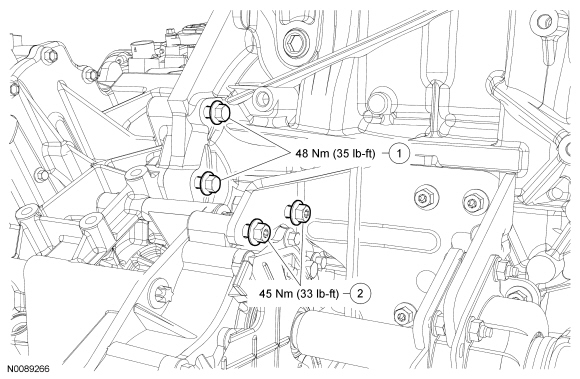

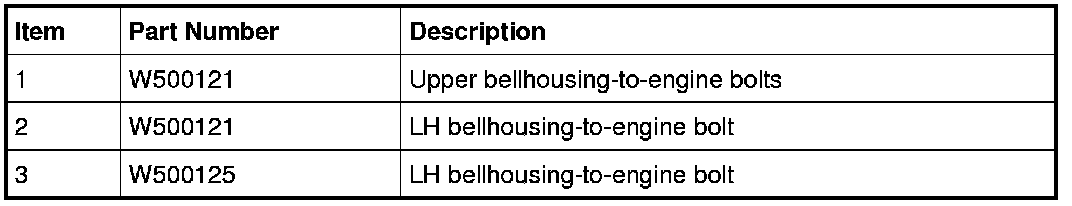

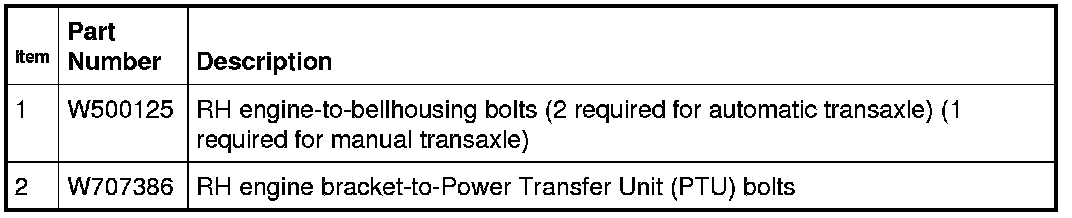

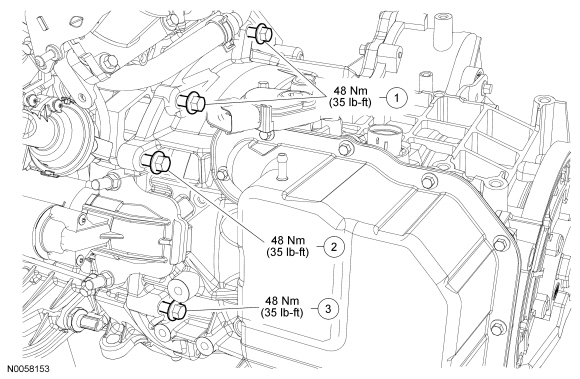

Oil Pan, Oil Pump Screen and Pickup Tube, All-Wheel Drive (AWD) Vehicles
Oil Pan, Oil Pump Screen and Pickup Tube

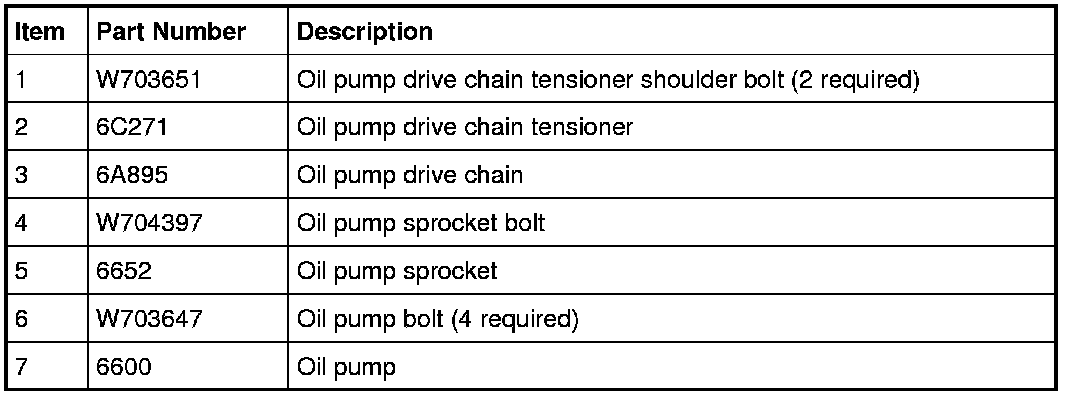

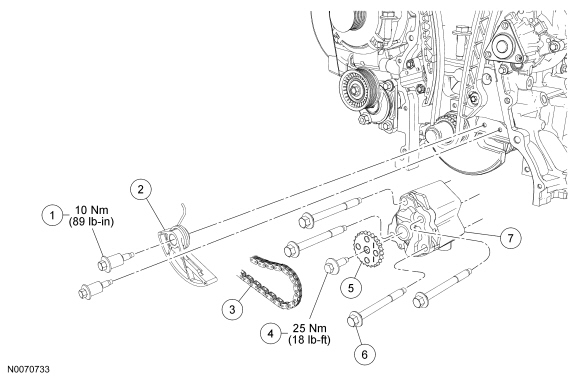

Oil Pump
