2012 Ford Escape 2WD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Oil Pressure Sensor: Service and Repair
Engine Oil Pressure (EOP) Switch
Removal and Installation

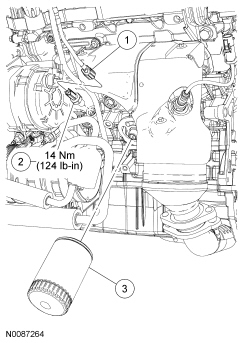

1. With the vehicle in NEUTRAL, position it on a hoist.
2. NOTE: Lubricate the engine oil filter gasket with clean engine oil prior to installing.
Remove the engine oil filter.
- To install, tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.

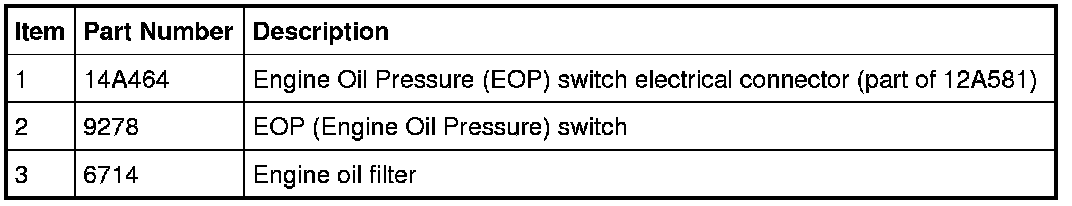

3. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.
4. Remove the EOP (Engine Oil Pressure) switch.
- To install, tighten to 14 Nm (124 lb-in).
5. To install, reverse the removal procedure.

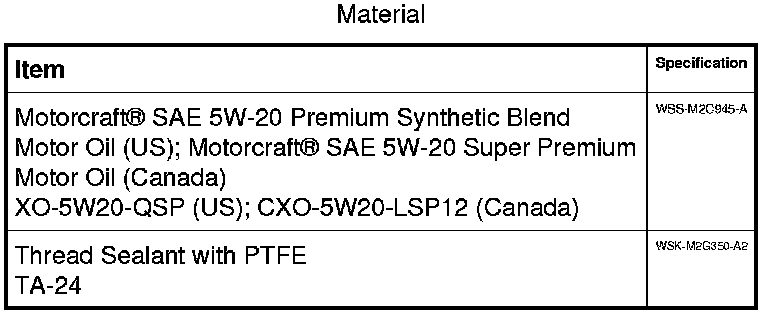

- Apply thread sealant to the EOP (Engine Oil Pressure) switch threads.
