2012 Ford Escape 2WD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Service and Repair

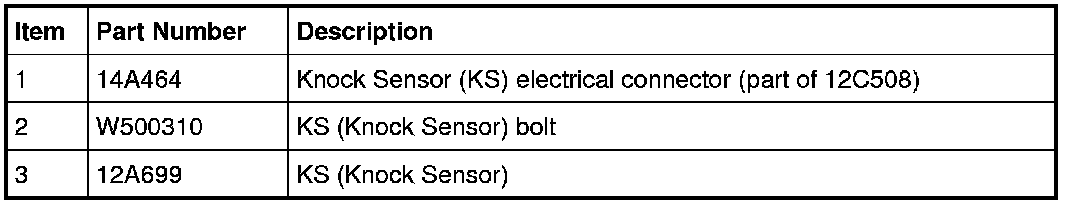

Knock Sensor (KS)

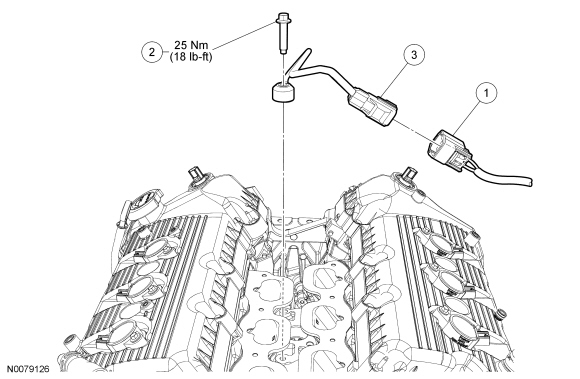

Cylinder Head-Mounted Knock Sensor (KS)

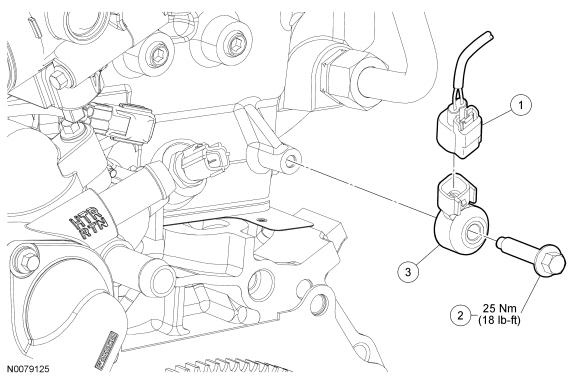

Engine Block-Mounted Knock Sensor (KS)
Removal
Cylinder head-mounted Knock Sensor (KS)
1. Disconnect the Knock Sensor (KS) electrical connector.
2. Remove the bolt and the KS (Knock Sensor).
Engine block-mounted KS (Knock Sensor)
3. Remove the lower intake manifold.
4. Disconnect the KS (Knock Sensor) electrical connector.
5. Remove the bolt and the KS (Knock Sensor).
Installation
Engine block-mounted KS (Knock Sensor)
1. Install the KS (Knock Sensor) and the bolt.
- Tighten to 25 Nm (18 lb-ft).
2. Connect the KS (Knock Sensor) electrical connector.
3. Install the lower intake manifold.
Cylinder head-mounted KS (Knock Sensor)
4. Install the KS (Knock Sensor) and the bolt.
- Tighten to 25 Nm (18 lb-ft).
5. Connect the KS (Knock Sensor) electrical connector.
