2012 Ford Escape 2WD V6-3.0LFACTORY OEM SERVICE PROCEDURE
Engine Temperature Sensor: Service and Repair

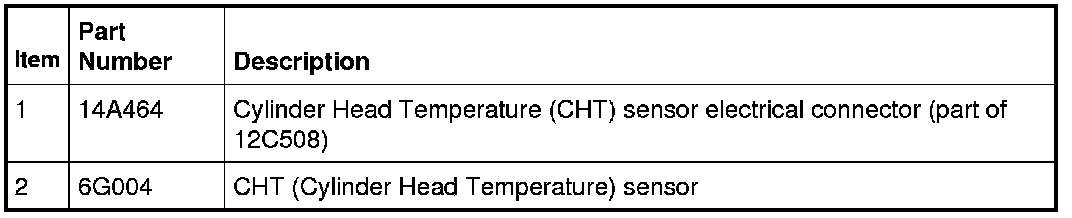

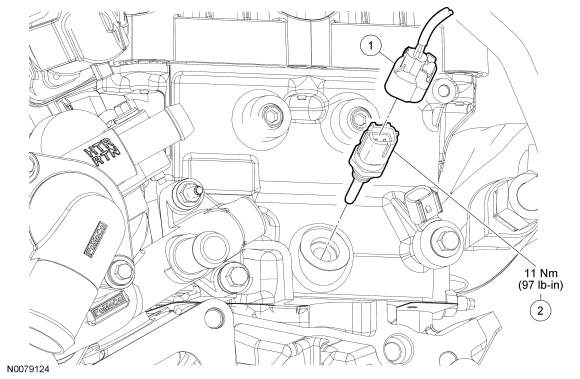

Cylinder Head Temperature (CHT) Sensor
NOTE: If the cylinder head is being replaced, the CHT must be replaced.
1. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.
2. Remove the CHT (Cylinder Head Temperature) sensor.
- To install, tighten to 11 Nm (97 lb-in).
3. To install, reverse the removal procedure.
