2012 Ford Escape 2WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Oil Pressure Sensor: Service and Repair
Engine Oil Pressure (EOP) Switch
Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the 5 bolts, pin-type retainer (not shown) and the RH splash shield.
- To install, tighten to 9 Nm (80 lb-in).
3. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.
4. Remove the EOP (Engine Oil Pressure) switch.
- To install, tighten to 15 Nm (133 lb-in).
5. To install, reverse the removal procedure.

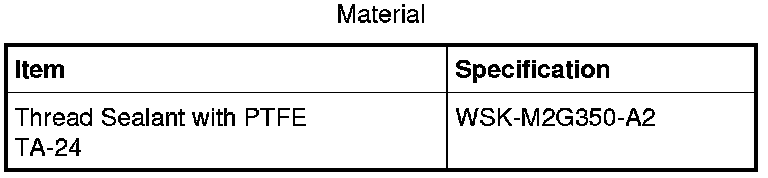

- Apply thread sealant to the EOP (Engine Oil Pressure) switch threads.
