2011 Ford Transit Connect L4-2.0LFACTORY OEM SERVICE PROCEDURE
Spark Plugs
Spark Plugs
Removal and Installation
1. Remove the ignition coil-on-plugs. For additional information, refer to Ignition Coil-On-Plug Ignition Coil-On-Plug.
2. NOTICE: Only use hand tools when removing or installing the spark plugs, or damage can occur to the cylinder head or spark plug.
NOTE: Use compressed air to remove any foreign material in the spark plug wells prior to removing the spark plugs.
Remove the spark plugs.
- To install, tighten to 12 Nm (106 lb-in).
3. Inspect the spark plugs. For additional information, refer to Engine System - General Information Testing and Inspection.
4. To install, reverse the removal procedure.

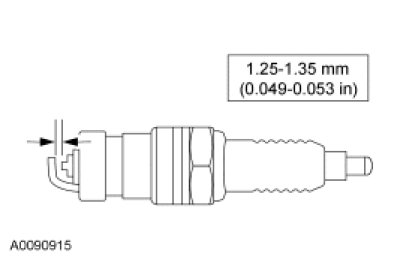

- Adjust the spark plug gap as necessary.
