2011 Ford Transit Connect L4-2.0LFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Service and Repair
Knock Sensor (KS)
Removal and Installation
1. Remove the intake manifold. For additional information, refer to Engine - 2.0L Service and Repair.
2. NOTE: The Knock Sensor (KS) must not touch the crankcase vent oil separator.

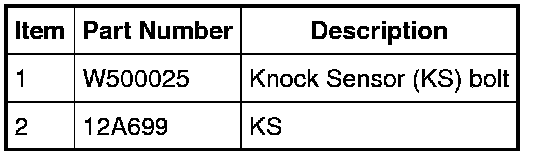

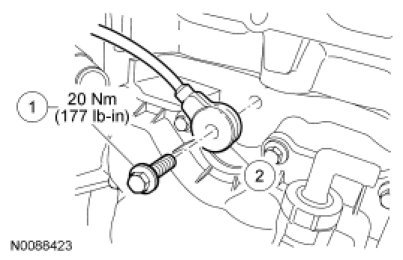

Remove the bolt and the KS.
- To install, tighten to 20 Nm (177 lb-in).
3. To install, reverse the removal procedure.
