2011 Ford Transit Connect L4-2.0LFACTORY OEM SERVICE PROCEDURE
Power Steering Pressure Switch: Service and Repair

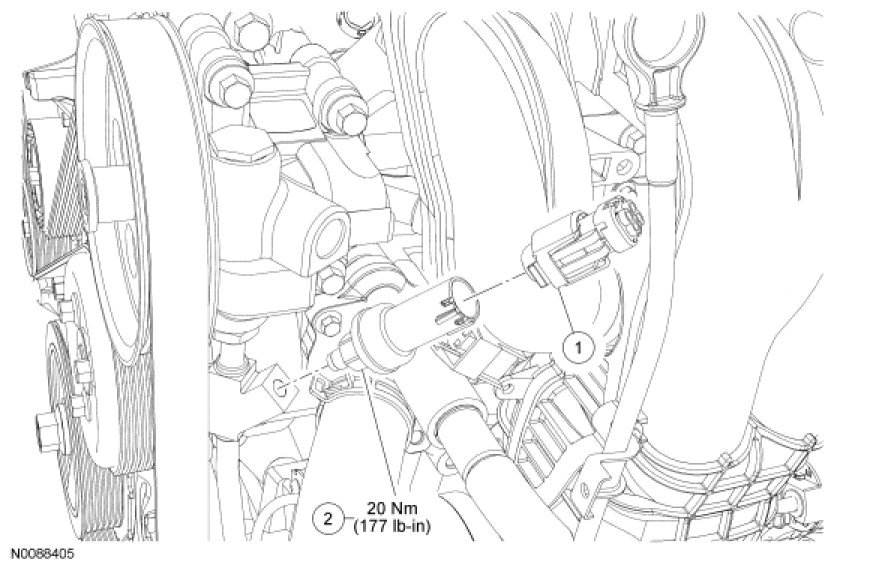

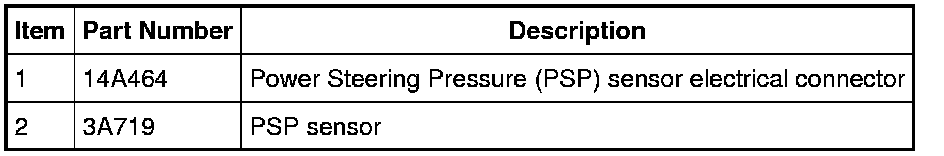

Power Steering Pressure (PSP) Switch
Removal and Installation
1. Disconnect the Power Steering Pressure (PSP) switch electrical connector.
2. Remove the PSP switch.
- To install, tighten to 20 Nm (177 lb-in).
3. To install, reverse the removal procedure.
