2011 Ford Transit Connect L4-2.0LFACTORY OEM SERVICE PROCEDURE
Toe Adjustment - Front
Toe Adjustment - Front
1. Using a suitable steering wheel holding device, lock the steering wheel in the straight ahead position.
2. Using alignment equipment and the manufacturer's instructions, measure the toe.
3. Loosen the tie-rod jam nuts.
4. Remove the steering gear boot outer clamps.

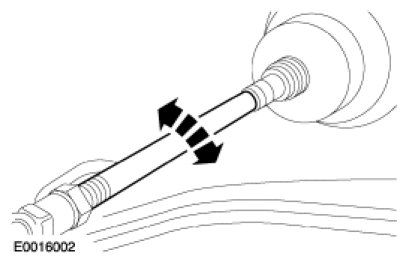

5. Rotate the tie rods as necessary to adjust the toe setting.

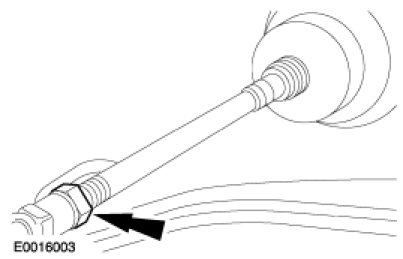

6. Tighten the tie-rod jam nuts to 80 Nm (59 lb-ft).

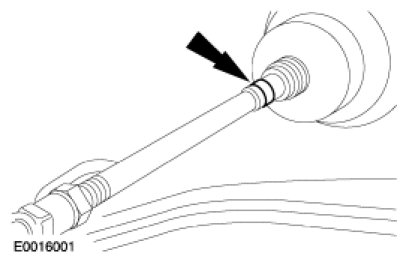

7. Install the steering gear boot outer clamps.
8. Recheck the toe settings, adjust as necessary.
9. If equipped with Advance Track(R) and Roll Stability Control (RSC(R)), calibrate the ABS module.
- Carry out the IVD Initialization sequence for the steering angle sensor. Follow the scan tool directions.
