2011 Ford Transit Connect L4-2.0LFACTORY OEM SERVICE PROCEDURE

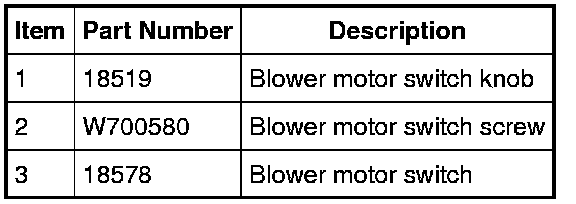

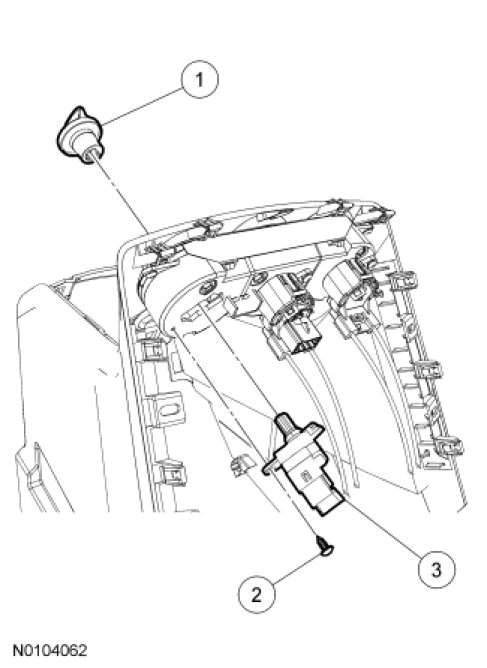

Blower Motor Switch
Blower Motor Switch
Removal and Installation
1. Remove the floor console. For additional information, refer to Instrument Panel and Console Console - Floor.
2. Remove the blower motor switch knob.
3. Remove the blower motor switch screw.
4. Rotate the blower motor switch to disengage it from the climate control assembly and remove the blower motor switch.
5. To install, reverse the removal procedure.
