2011 Ford Transit Connect L4-2.0LFACTORY OEM SERVICE PROCEDURE
Telematics Module
Telematics Module

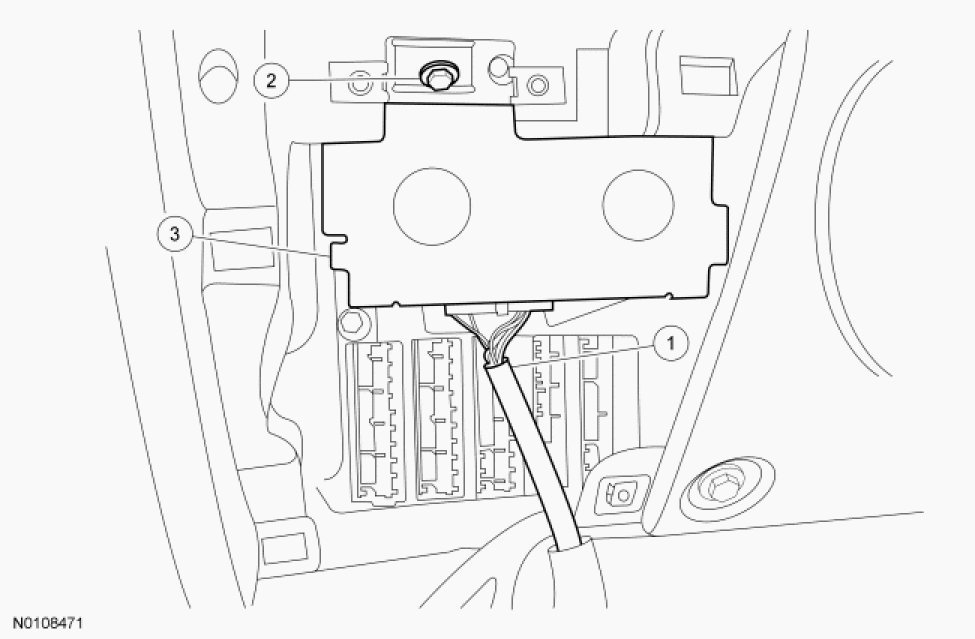

Removal
1. Turn the ignition to OFF.
2. Remove the instrument panel fuse box cover.

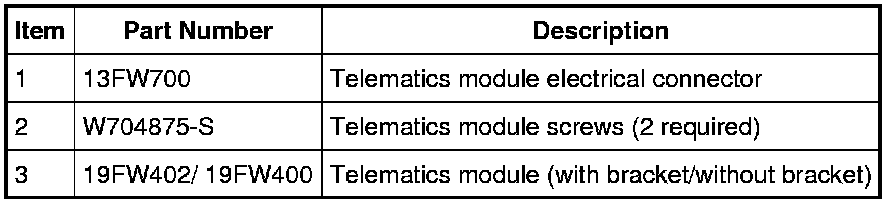

3. Disconnect the telematics module electrical connector.
4. Remove the telematics module.
1. Remove the 2 screws.
2. Remove the bracket.
3. Remove the telematics module.
Installation
1. Position the telematics module and the bracket, and install the 2 screws.
2. Connect the telematics module electrical connector.
3. Install the instrument panel fuse box cover.
4. Initialize the telematics module.
1. Wait 5 minutes after the modem-antenna is installed.
2. Turn the ignition to RUN.
3. Wait 10 seconds.
4. Start the vehicle and run the engine for 30 seconds.
5. Turn the ignition to OFF.
