2011 Ford Transit Connect L4-2.0LFACTORY OEM SERVICE PROCEDURE

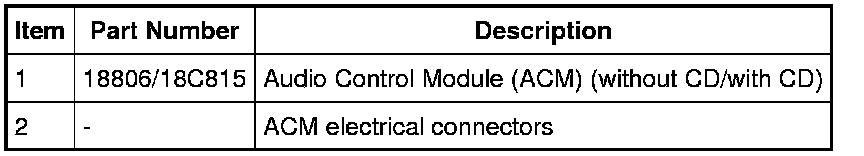

Audio Control Module (ACM)
Audio Control Module (ACM)
Removal
1. NOTE: Module configuration is only required when a new Audio Control Module (ACM) with single CD is being installed.
Upload the ACM configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Module Configuration Programming and Relearning.
2. NOTE: Insert tools with the N0. 2 markings facing down for the left side and N0. 2 markings facing up for the right side.

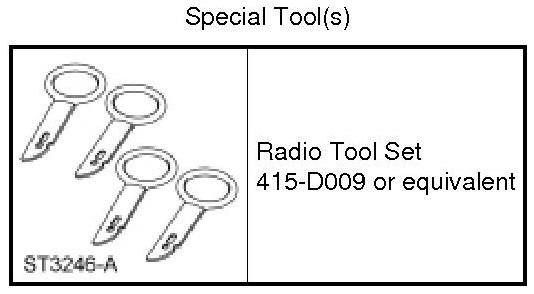

Insert the special tools in the slots at all 4 corners of the ACM until a click is heard.

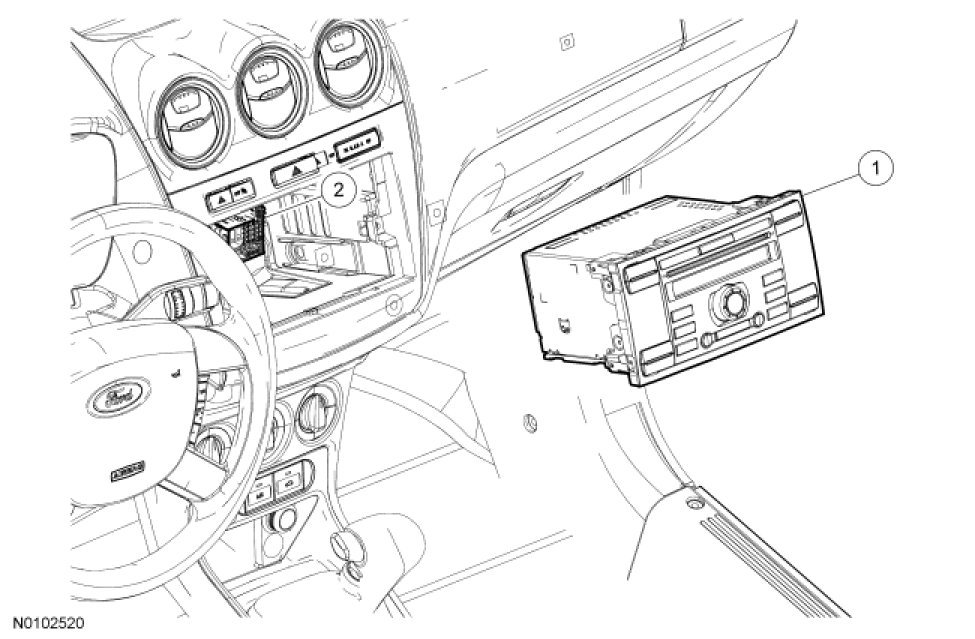

3. Remove the ACM then disconnect the electrical connectors.
4. Remove the special tools from the ACM by pressing inward on the ACM retention tabs and then pulling the special tools out.
Installation
1. Press the ACM in until a click is heard from each of the 4 retention tabs.
2. Download the configuration information to the ACM. For additional information, refer to PMI in Module Configuration Programming and Relearning.
