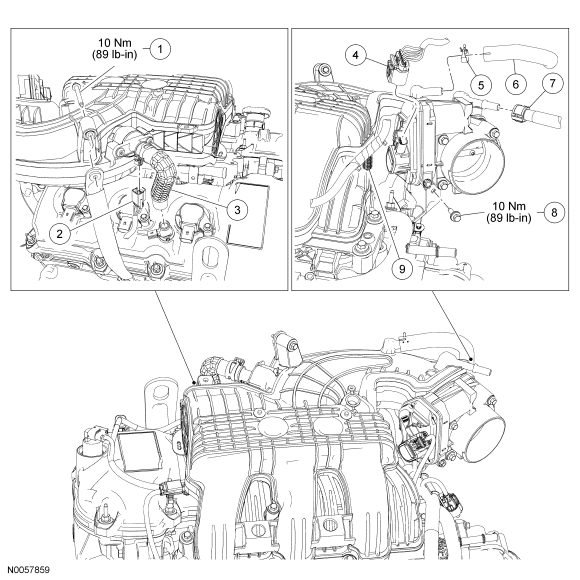

Fig 1: Upper Intake Manifold With Torque Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503274	Upper intake manifold support bracket bolt
2	14A464	Positive crankcase ventilation (PCV) fitting electrical connector (part of 12C508)
3	6K817	PCV hose
4	14A464	Throttle body electrical connector (part of 12C508)
5	CS16140	Brake booster-to-intake manifold vacuum hose clamp
6	6K817	Brake booster-to-intake manifold vacuum hose
7	9D661	Evaporative emissions (EVAP)-to-intake manifold tube
8	W503274	Upper intake manifold support bracket bolt
9	-	Engine control wiring harness retainer (part of 12C508)

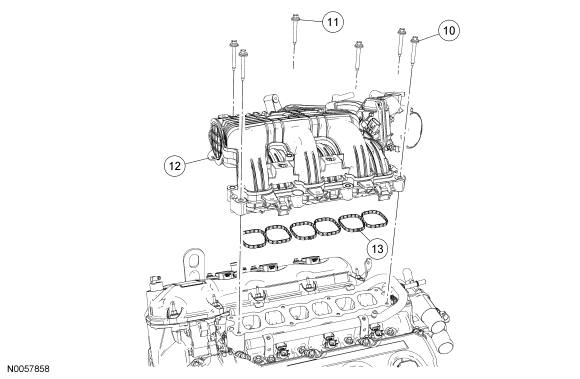

Fig 2: Identifying Upper Intake Manifold (2 Of 2)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
10	W503282	Upper intake manifold bolt (5 required)
11	W707083	Upper intake manifold bolt
12	9S455	Upper intake manifold
13	9H486	Upper intake manifold gasket (3 required)
