2011 Ford Taurus SEFACTORY OEM SERVICE PROCEDURE
Front Disc Brake: Notes
WARNING: This page is about a different car, the 2007 Lincoln MKX and 2007 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| High Temperature Nickel Anti-Seize Lubricant XL-2 (US); CXG-2-B (Canada) |
ESE-M12A4-A |
| Metal Brake Parts Cleaner PM-4-A or PM-4-B (US); CPM-4 (Canada) |
- |

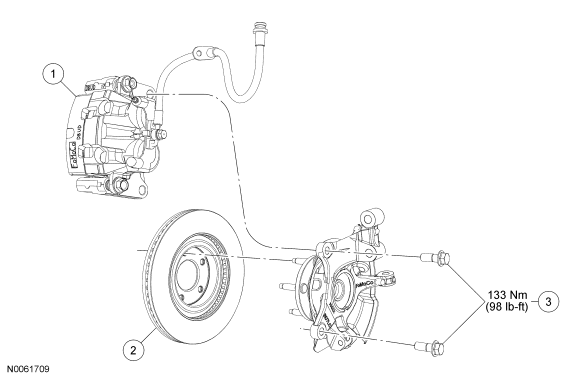

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Brake caliper and anchor plate assembly |
| 2 | 1032 | Brake disc |
| 3 | 2248 | Brake caliper anchor plate bolts (2 required) |
