Engine Ignition Components - Exploded View
3.5L LH Side
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Crankcase ventilation tube-to-valve cover fitting quick connect coupling (part of 6758) |
| 2 | - | Ignition coil-on-plug electrical connector (part of 12A581) (3 required) |
| 3 | W714507 | Ignition coil-on-plug bolt (3 required) |
| 4 | 12A375 | Ignition coil-on-plug (3 required) |
| 5 | 12405 | Spark plug (3 required) |
| 6 | 12A384 | Coil seal (3 required) |
3.5L RH Side
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Ignition coil-on-plug electrical connector (part of 12A581) (3 required) |
| 2 | W714507 | Ignition coil-on-plug bolt (3 required) |
| 3 | 12A375 | Ignition coil-on-plug (3 required) |
| 4 | 12405 | Spark plug (3 required) |
| 5 | 12A384 | Coil seal (3 required) |

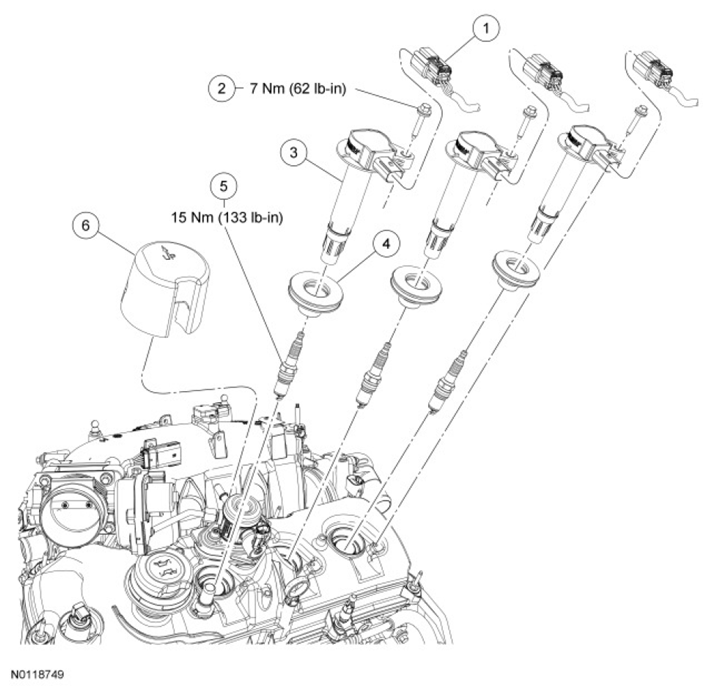

3.5L Gasoline Turbocharged Direct Injection (GTDI) LH Side
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Ignition coil-on-plug electrical connector (part of 12A581) (3 required) |
| 2 | W714507 | Ignition coil-on-plug bolt (3 required) |
| 3 | 12A375 | Ignition coil-on-plug (3 required) |
| 4 | 12A384 | Coil seal (3 required) |
| 5 | 12405 | Spark plug (3 required) |
| 6 | 6N041 | Fuel injection pump noise insulator shield |

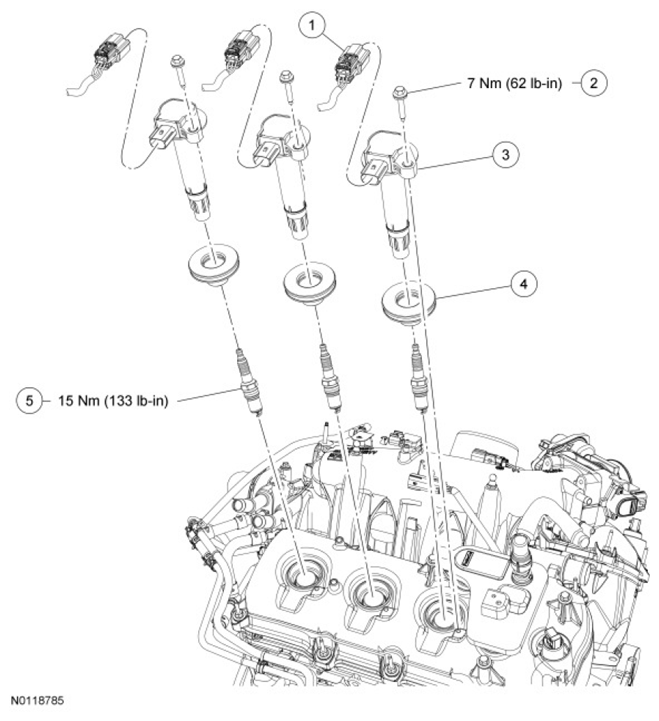

3.5L GTDI RH Side
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Ignition coil-on-plug electrical connector (part of 12A581) (3 required) |
| 2 | W714507 | Ignition coil-on-plug bolt (3 required) |
| 3 | 12A375 | Ignition coil-on-plug (3 required) |
| 4 | 12A384 | Coil seal (3 required) |
| 5 | 12405 | Spark plug (3 required) |
- Refer to the appropriate procedures and/or exploded views in this Service Information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
