2011 Ford Taurus FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Seat Back

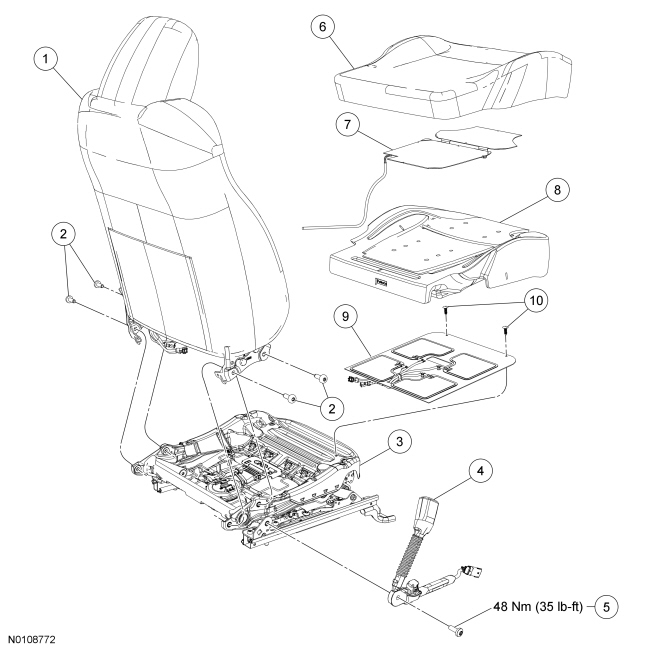

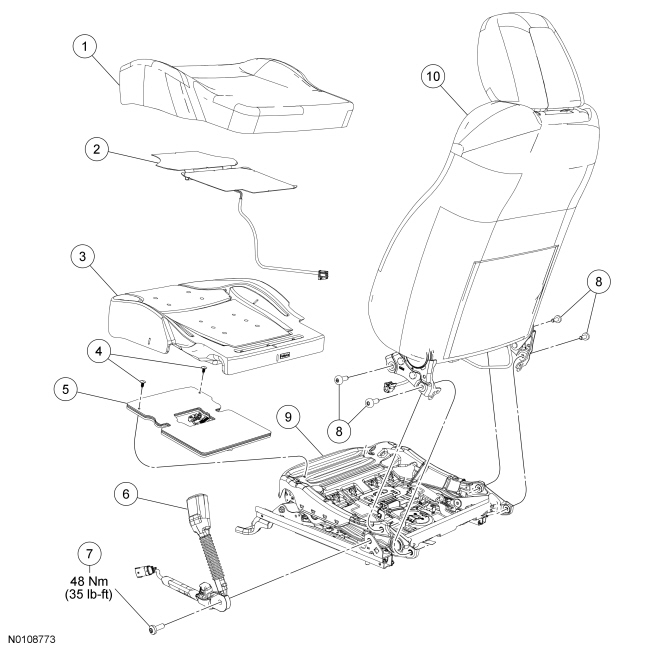

Seat - Exploded View, Front

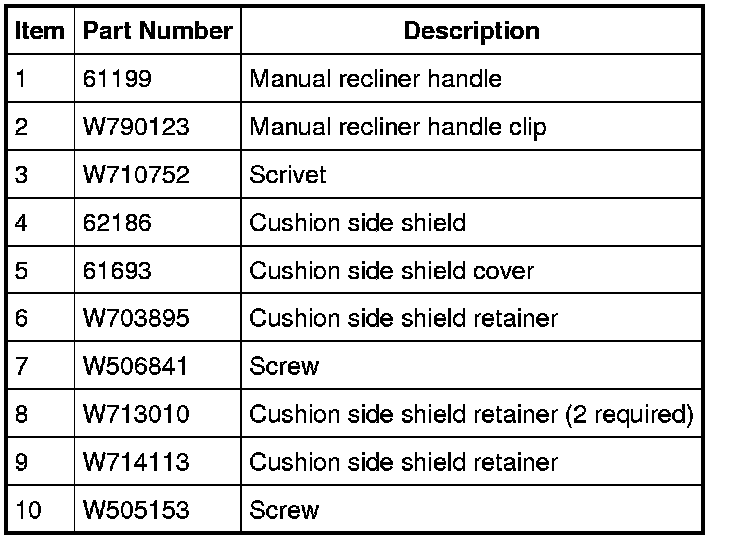

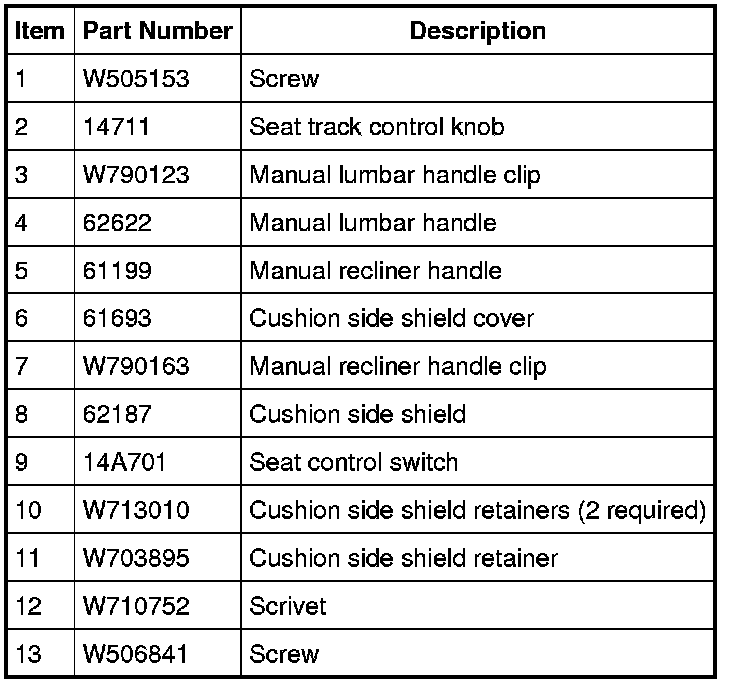

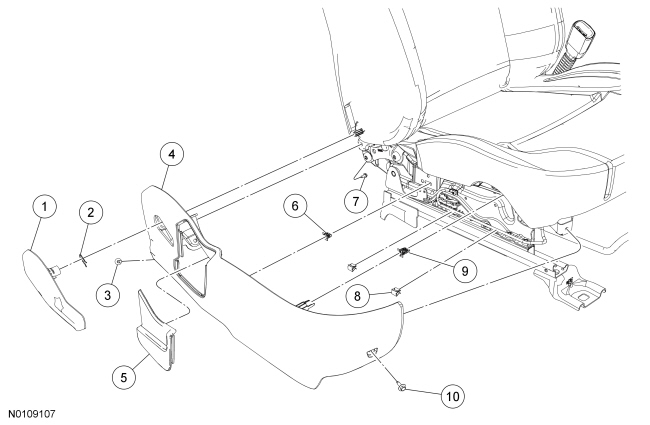

Cushion Side Shield - Manual Seat Track With Manual Recline

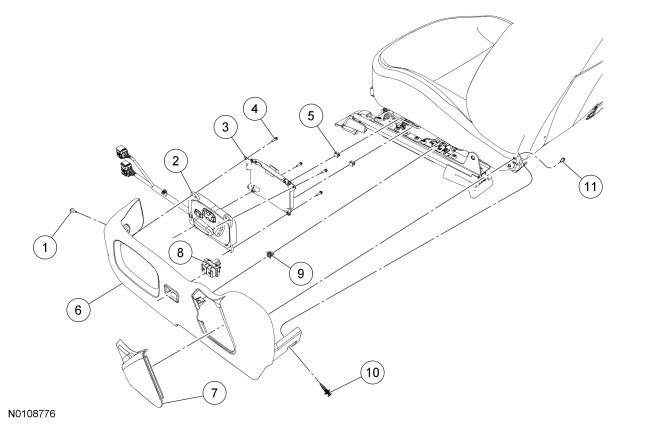

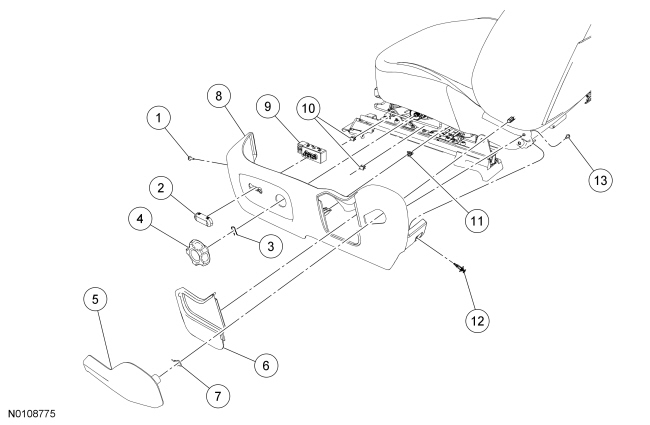

Cushion Side Shield - Power Seat Track With Manual Recline and Manual Lumbar (6-Way Power)

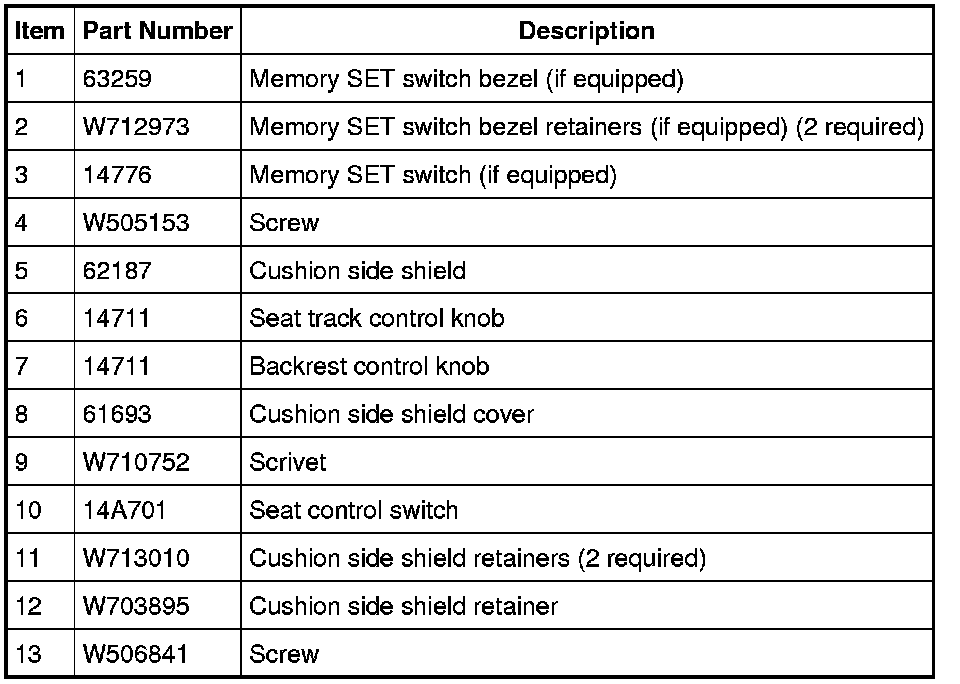

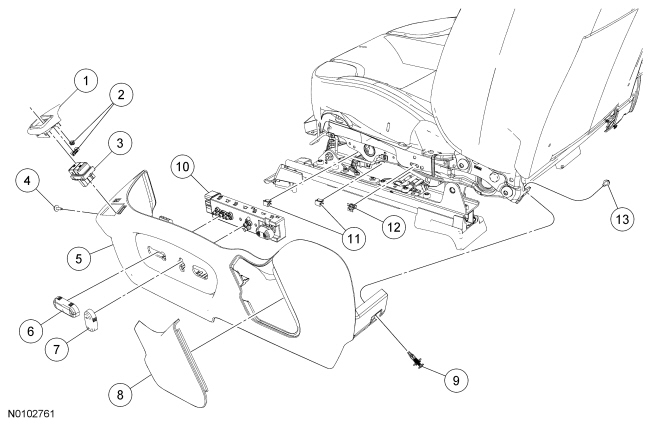

Cushion Side Shield - Power Seat Track With Power Recline, Power Lumbar and Memory (10-Way Power)
Cushion Side Shield - Power Seat Track With Power Recline, Power Lumbar With Massage and Memory (14-Way Power)

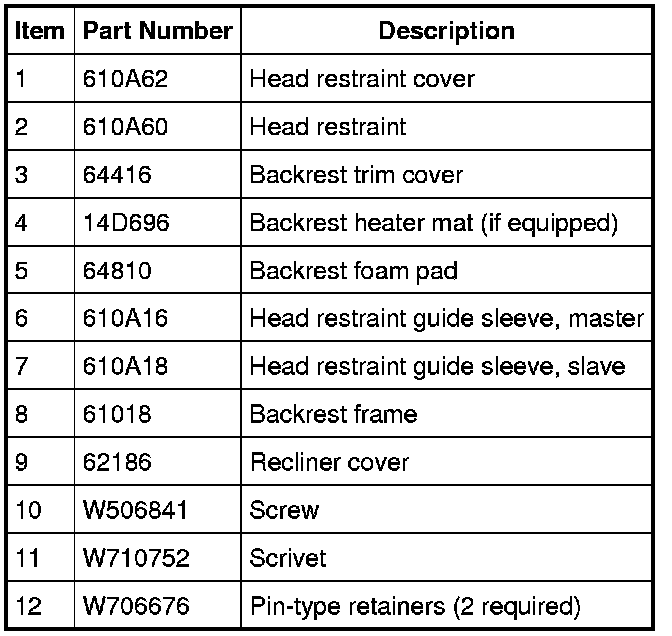

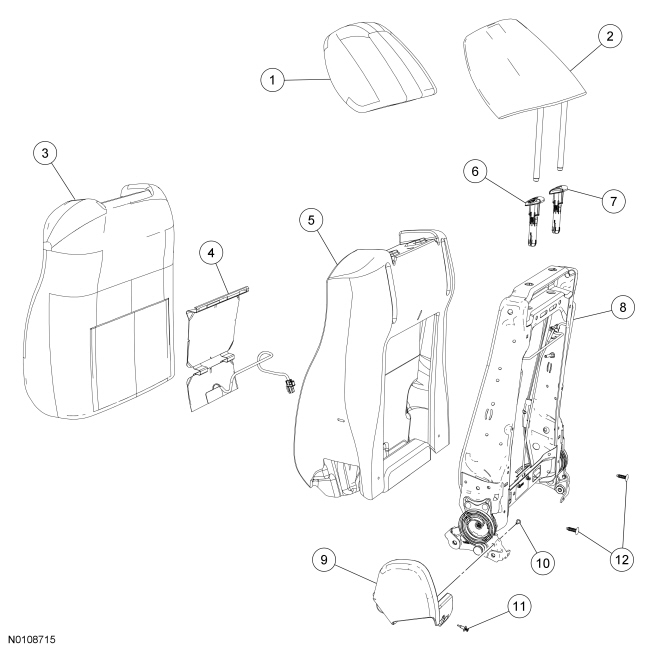

Seat Backrest - Trim Parts

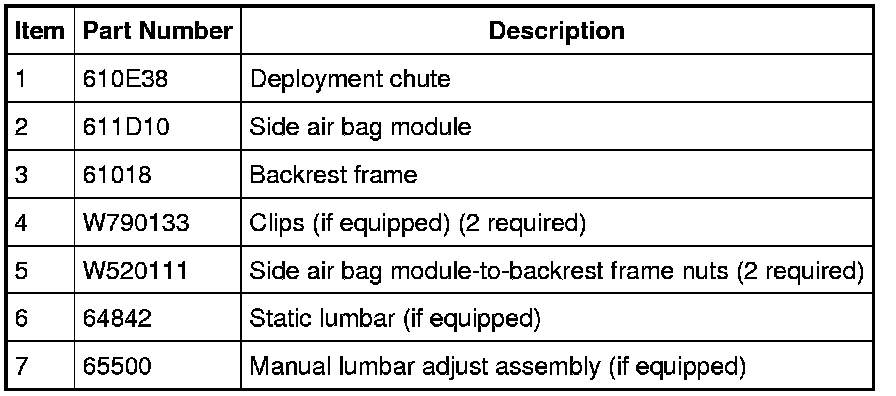

Seat Backrest - Frame Parts With Manual Lumbar and Static Lumbar

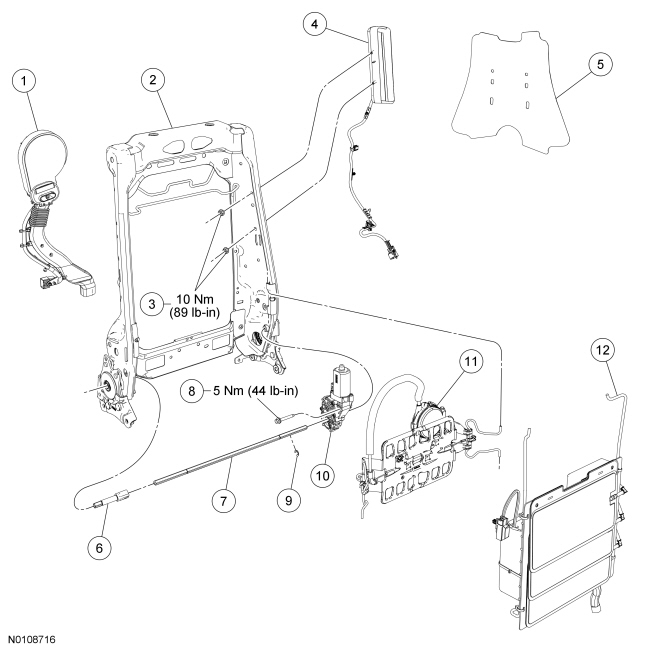

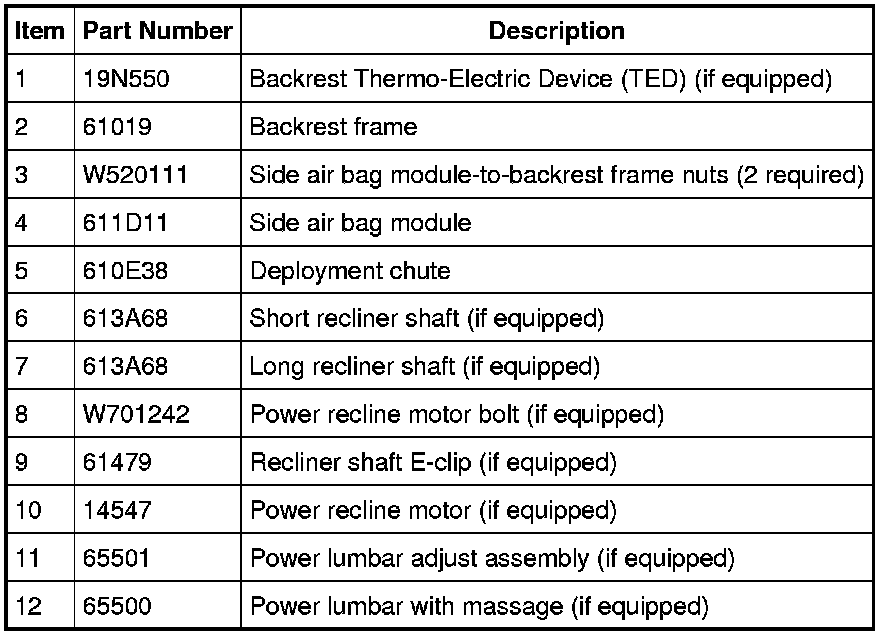

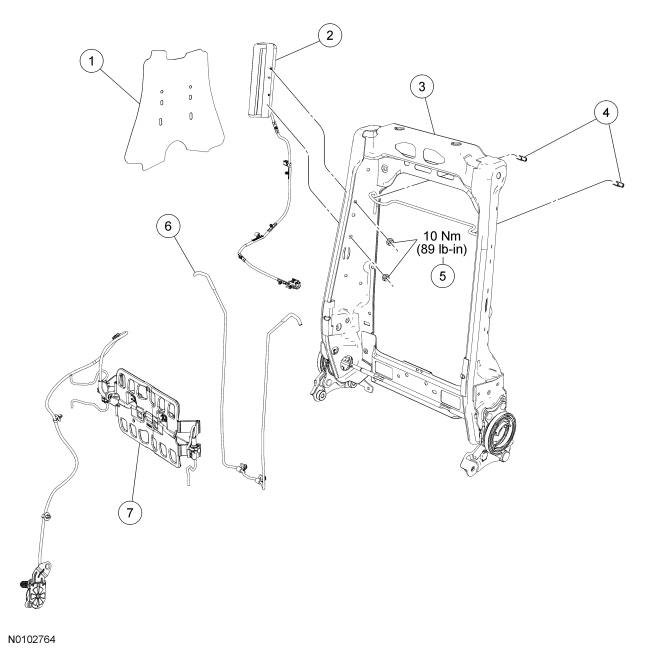

Seat Backrest - Frame Parts With Power Recline, Power Lumbar, Power Lumbar With Massage and Climate Controlled Seat System

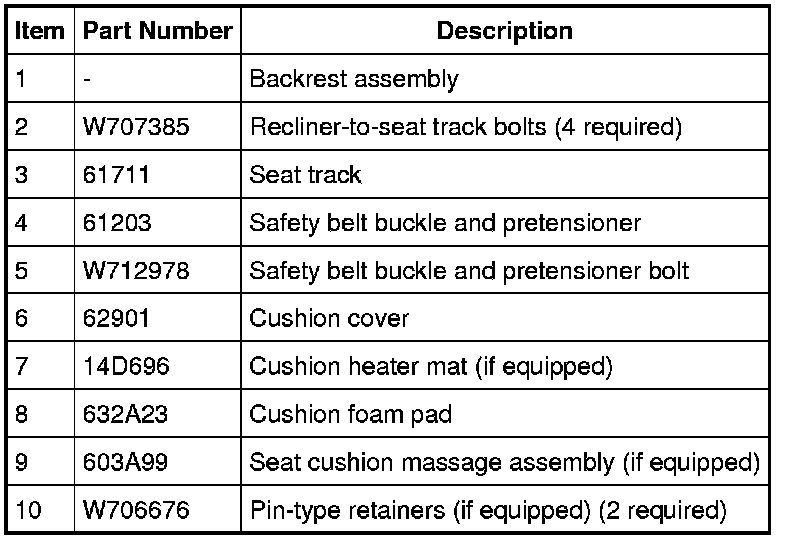

Seat Cushion - With Massage and Heat
NOTE: Refer to Seat Backrest - Front Seat Backrest - Front for recliner-to-seat track bolt tightening sequence and torque specification.

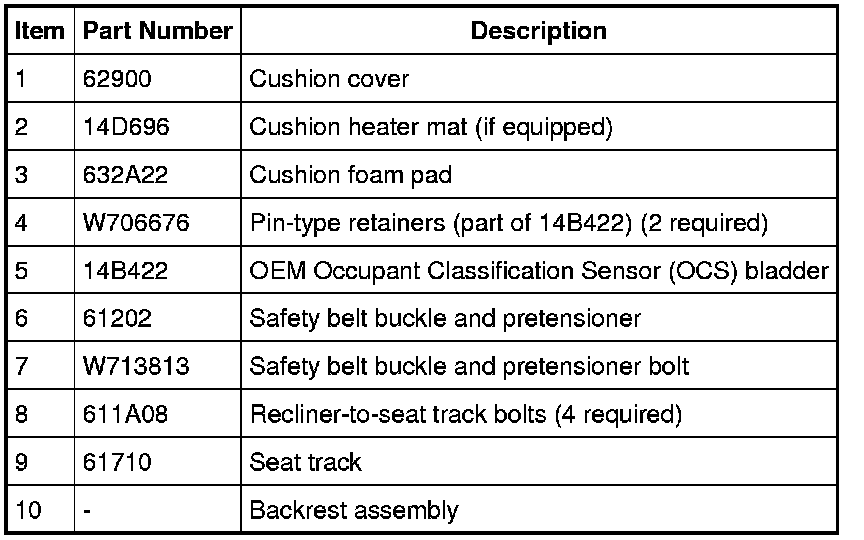

Passenger Seat Cushion With An OEM Occupant Classification Sensor (OCS) Bladder System and Heat
NOTE: Refer to Seat Backrest - Front Seat Backrest - Front for recliner-to-seat track bolt tightening sequence and torque specification.

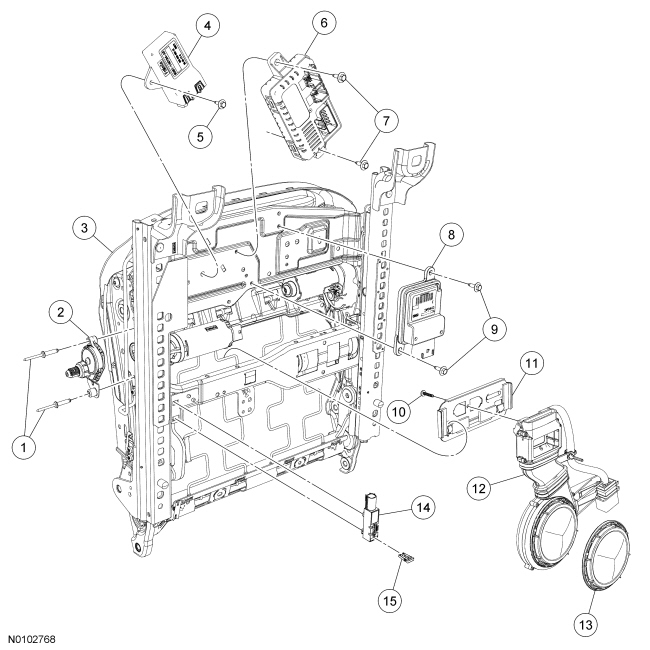

Passenger Power Seat Track

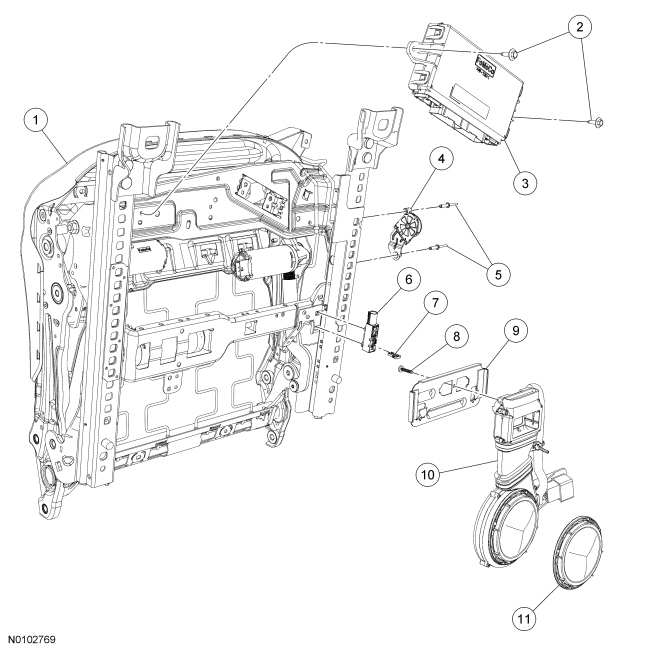

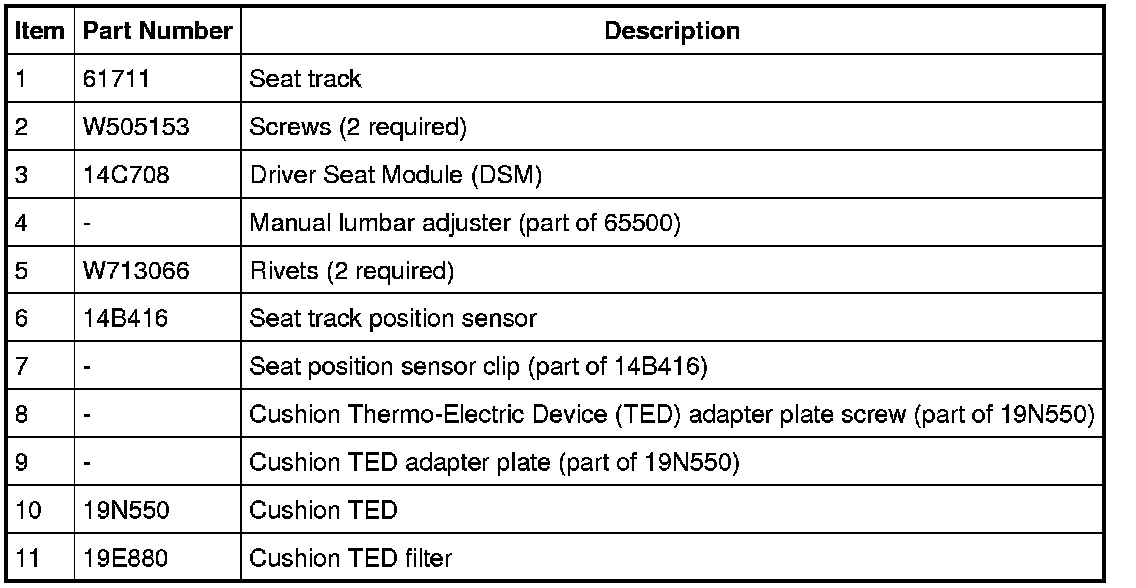

Driver Power Seat Track

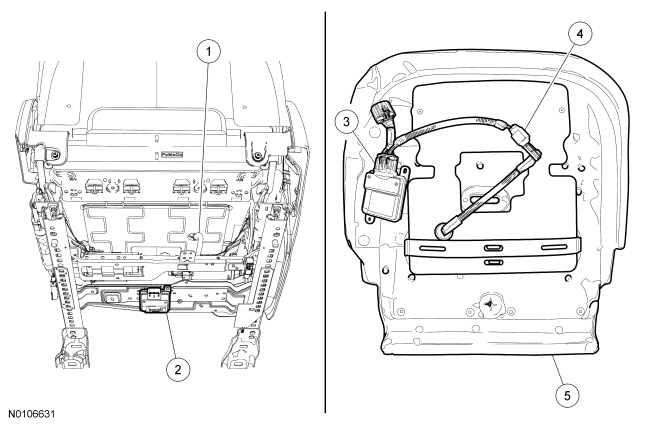

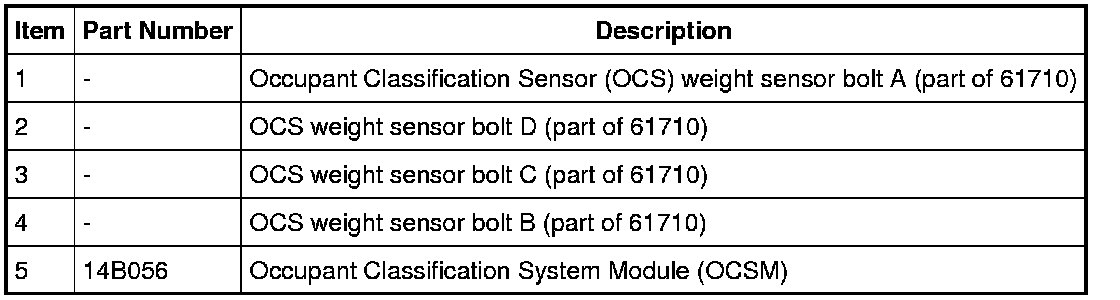

Passenger Seat Occupant Classification Sensor (OCS) Weight Sensor Bolt System Identification
Passenger Seat Occupant Classification Sensor (OCS) Bladder System Identification
NOTE: Power seat track shown, manual similar.
