Cruise Control Module: Service and Repair

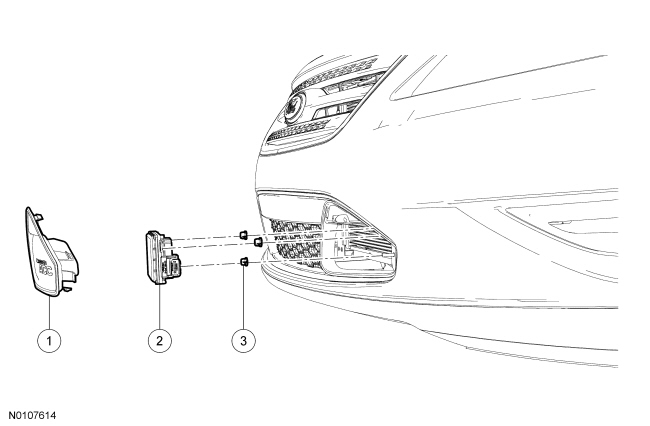

Cruise-Control Module (C-CM)

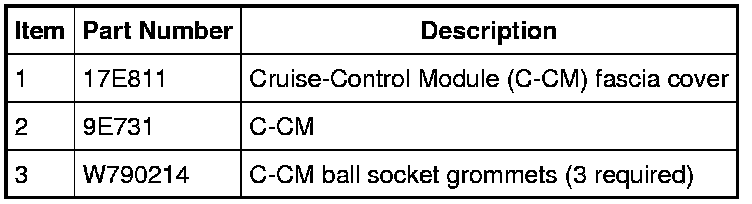

Cruise-Control Module (C-CM)

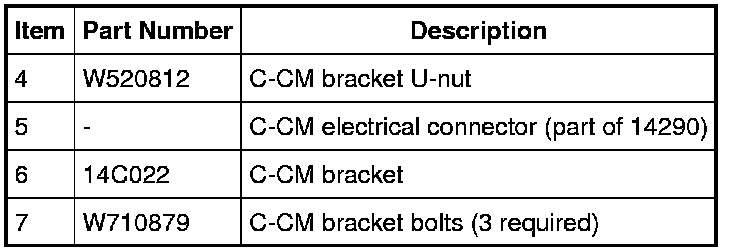

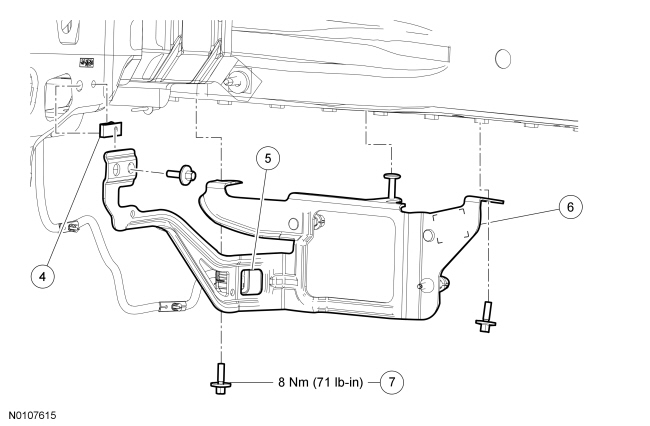

C-CM Bracket









Removal

NOTE: The vertical and horizontal alignment procedures need to be carried out to align the sensor.

Cruise-Control Module (C-CM) or bracket

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.

2. Remove the front lower air deflector.

3. Remove the C-CM fascia cover by pulling straight forward.

4. Gently pry the C-CM away from the retaining studs.
- Disconnect the electrical connector.

5. Inspect the C-CM grommets for any damage.

Bracket

6. Remove the 3 bolts and the C-CM bracket assembly.

Installation

Bracket

1. Install the 3 bolts and the C-CM bracket assembly.
- Tighten the bolts to 8 Nm (71 lb-in).

C-CM or bracket

NOTE: The vertical and horizontal alignment procedures need to be carried out to align the sensor.

2. NOTE: If one plastic grommet breaks while the C-CM is being installed, a new grommet should be installed.

Firmly apply pressure to the C-CM so that it seats completely in the grommets.

3. Once the C-CM is installed, pull the C-CM to confirm that all 3 ball studs are fully seated in the grommets.

4. Connect the C-CM connector.

5. Do not install the C-CM fascia cover until the alignment procedures are carried out.
- Vertically and horizontally align the C-CM. For additional information, refer to Cruise Control Module (C-CM) (with Sensor) Adjustment Adjustments.
