2011 Ford Ranger 2WD L4-2.3LFACTORY OEM SERVICE PROCEDURE
Catalyst Monitor Sensor
Catalyst Monitor Sensor
Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Jacking and Lifting Service and Repair.
2. Disconnect the Catalyst Monitor Sensor (CMS) electrical connector.
3. NOTE: If necessary, lubricate the CMS with lock lubricant to assist in removal.

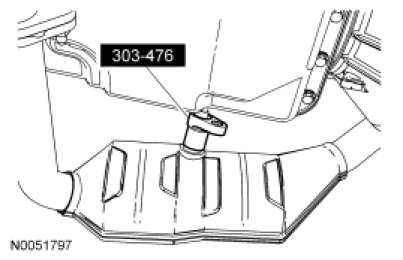

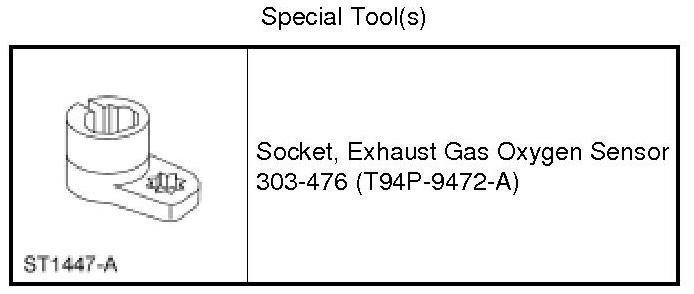

Using the Exhaust Gas Oxygen Sensor Socket, remove the CMS.
Installation

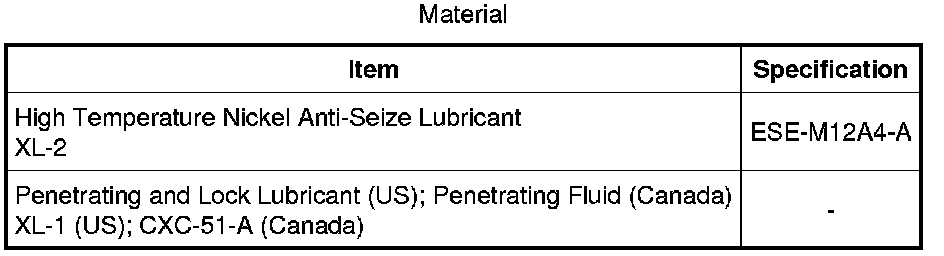

1. Apply a light coat of nickel anti-seize lubricant to the threads of the CMS.
2. Using the Exhaust Gas Oxygen Sensor Socket, install the CMS.
- Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas in the Appendix.
- Using the Exhaust Gas Oxygen Sensor Socket, tighten to 48 Nm (35 lb-ft).
3. Connect the CMS electrical connector.
