2011 Ford Mustang V6-3.7LFACTORY OEM SERVICE PROCEDURE
Timing Cover

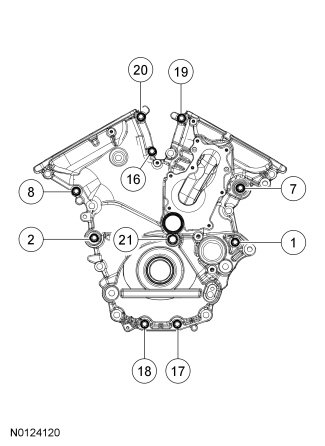

Install the engine front cover and bolts 1, 2, 7, 8, 16, 17, 18, 19, 20 and 21.
Tighten in sequence to 3 Nm (27 lb-in).
Install the remaining 12 engine front cover bolts.
Tighten all of the engine front cover bolts in the sequence shown in 4 stages:
Stage 1: Tighten bolts 1 through 21 to 10 Nm (89 lb-in).
Stage 2: Tighten bolts 1 through 20 to 24 Nm (18 lb-ft).
Stage 3: Tighten bolt 21 to 20 Nm (177 lb-in) then an additional 90 degrees.
Stage 4: Tighten bolt 22 to 10 Nm (89 lb-in) then an additional 45 degrees.
