2011 Ford Mustang V6-3.7LFACTORY OEM SERVICE PROCEDURE
Timing Component Alignment Marks: Locations
Timing Component Alignment Marks
For detailed instructions see Timing Drive Components Installation
Install the primary timing chain with the colored links aligned with the timing marks on the VCT assemblies and the crankshaft sprocket.

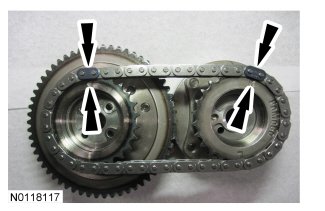

RH VCT
Align the colored links with the timing marks.

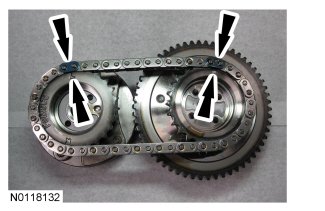

LH VCT
Align the colored links with the timing marks.
Post Check
As a post-check, verify correct alignment of all timing marks.
- There are 48 links in between the RH intake VCT assembly colored link (1) and the LH intake VCT assembly colored link (2).
- There is 35 links in between LH intake VCT assembly colored link (2) and the 2 crankshaft sprocket links (3).
