2011 Ford Mustang V6-3.7LFACTORY OEM SERVICE PROCEDURE
Toe Adjustment - Front
Toe Adjustment - Front
1. Start the engine and center the steering wheel.
2. Turn the engine off and, using a suitable steering wheel holding device, lock the steering wheel in the straight ahead position.
3. Using alignment equipment and the manufacturer's instructions, measure the front toe.

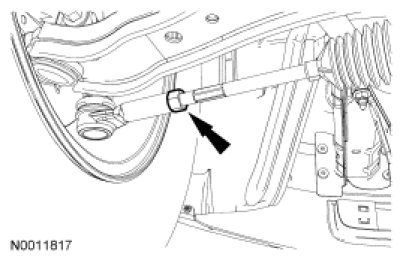

4. Remove the clamps.

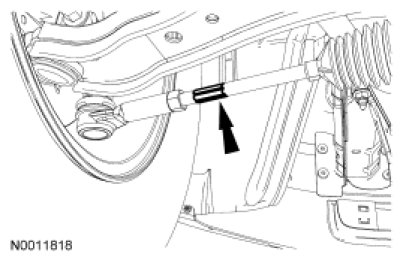

5. Loosen the tie-rod jam nuts.

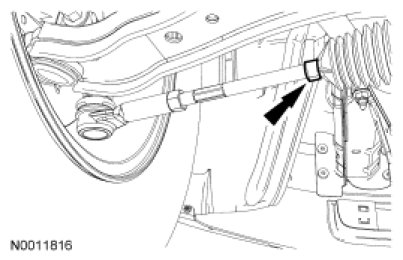

6. NOTE: Do not allow the steering gear bellows to twist when the inner tie rod is rotated.
Rotate the inner tie rods until the toe reading is within specifications.
7. NOTE: Do not allow the inner tie rods to rotate while tightening the tie-rod jam nuts.
Tighten the tie-rod jam nuts to 55 Nm (41 lb-ft).
8. Install the clamps.
9. Recheck the toe settings and adjust as necessary.
