Pinpoint Test B: Powertrain Control Module (PCM) Power Relay: Introduction
This pinpoint test is intended to diagnose the following:
- harness circuits: B+, IGN START/RUN, INJPWRM, ISP-R, ISP-R/S, PCMRC and VPWR
- PCM power relay (12A646)
- PCM (12A650)

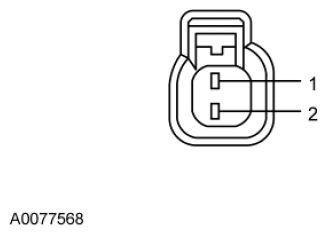

| Pin | Circuit |
|---|---|
| 2 | IGN START/RUN (Ignition START/RUN) |
| Pin | Circuit |
|---|---|
| 5 | VPWR (Vehicle Power) |
| 2 | PCMRC (PCM Relay Control) |
| 1, 3 | B+ (Battery Positive Voltage) |
| Pin | Circuit |
|---|---|
| 9 | ISP-R (Ignition Switch Position Run) |

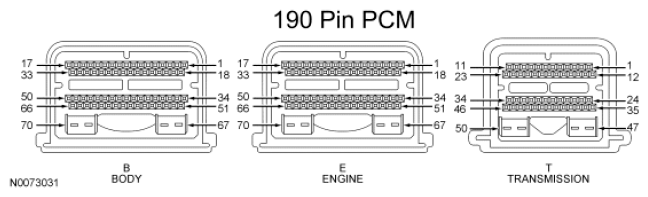

| Pin | Circuit |
|---|---|
| B67, B68 | VPWR (Vehicle Power) |
| B21 | INJPWRM (Injector Power Monitor) |
| B39 | ISP-R/S (Ignition Run/Start Input) |
| B38 | PCMRC (PCM Relay Control) |
| B42 | ISP-R (Ignition Switch Position Run) |
