2011 Ford Fusion FWD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Control Assembly: Service and Repair
Heating Ventilation Air Conditioning (HVAC) Module - Fusion, Milan
With Navigation System
Without Navigation System
Removal and Installation
Vehicles equipped with navigation system

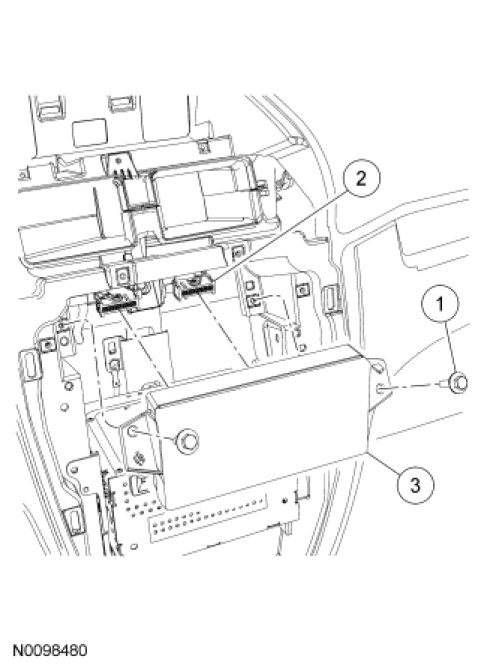

1. Remove the Front Display Interface Module (FDIM). For additional information, refer to Information and Entertainment Systems Service and Repair.

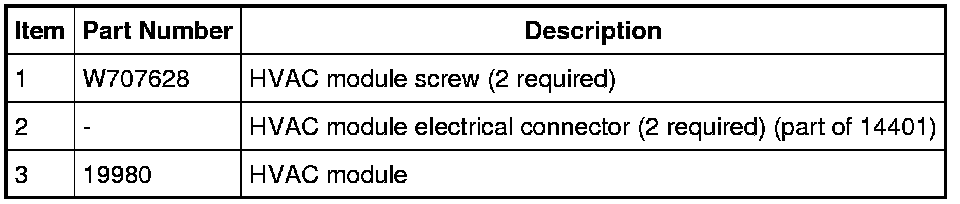

2. Remove the 2 HVAC module screws.
3. Disconnect the 2 HVAC module electrical connectors and remove the HVAC module.
Vehicles without navigation system

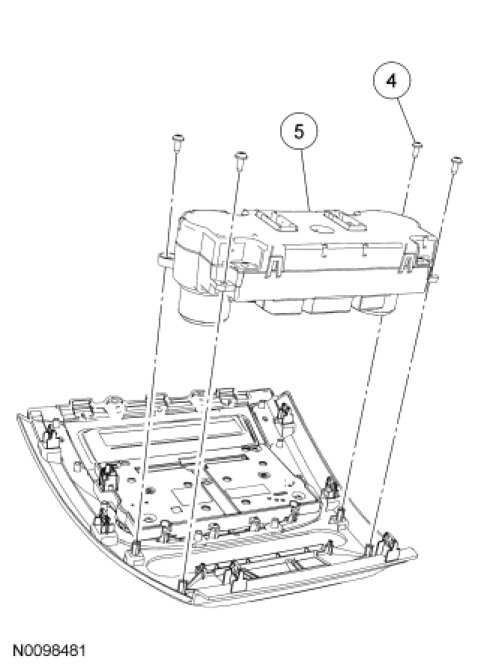

4. Remove the center instrument panel finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - Center.

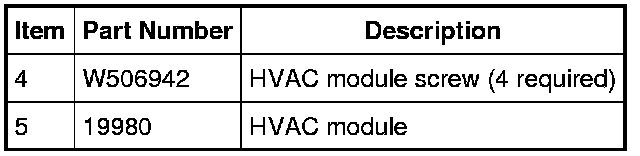

5. Remove the 4 HVAC module screws and remove the HVAC module.
All vehicles
6. To install, reverse the removal procedure.
