2011 Ford Focus SES, AutomaticFACTORY OEM SERVICE PROCEDURE
Diagnosis And Testing: Generator: Notes

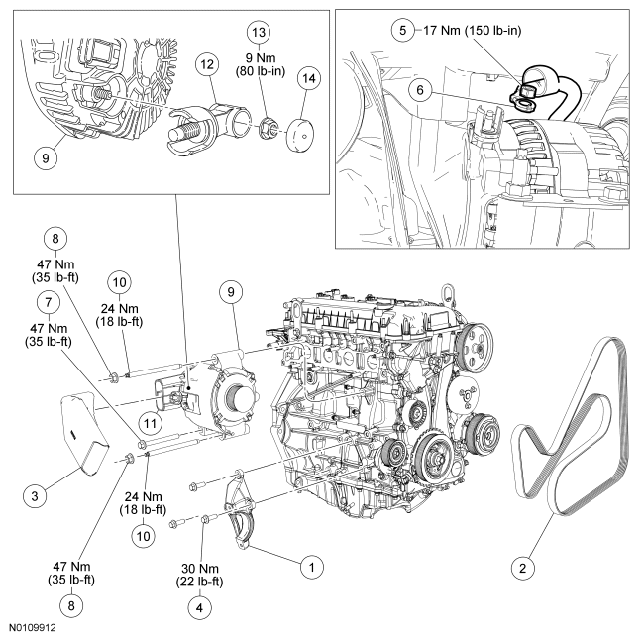

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Center support bracket |
| 2 | 6C301 | Front End Accessory Drive (FEAD) belt |
| 3 | 10C392 | Generator lower air duct |
| 4 | - | Center support bracket bolt (3 required) |
| 5 | W711953 | Generator B+ terminal nut (part of 10300) |
| 6 | - | Generator B+ terminal (part of 14A280) |
| 7 | W500130 | Generator bolt |
| 8 | W520414 | Generator nuts (2 required) |
| 9 | 10300 | Generator |
| 10 | W709489 | Generator studs (2 required) |
| 11 | 10C392 | Generator upper air duct |
| 12 | 10329 | Radial arm adapter |
| 13 | - | Radial arm adapter nut (part of 10329) |
| 14 | - | Radial arm adapter cap (part of 10329) |
