2011 Ford Focus SE, AutomaticFACTORY OEM SERVICE PROCEDURE
Steering Column: Notes

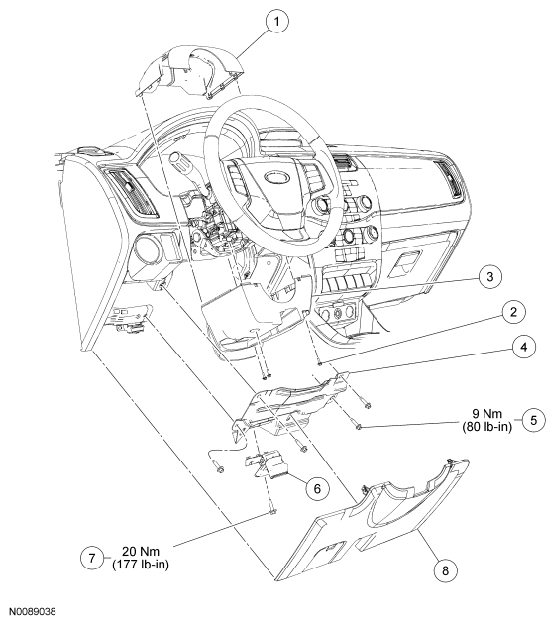

| Item | Part Number | Description |
|---|---|---|
| 1 | 3530 | Upper steering column shroud |
| 2 | W713494 | Lower steering column shroud screw (3 required) |
| 3 | 3530 | Lower steering column shroud |
| 4 | 54017A28 | Steering column opening reinforcement |
| 5 | W701928 | Steering column opening reinforcement bolt (4 required) |
| 6 | 16916 | Hood release handle and cable |
| 7 | W505424 | Hood release handle bolt |
| 8 | 5404459 | Steering column opening trim panel |

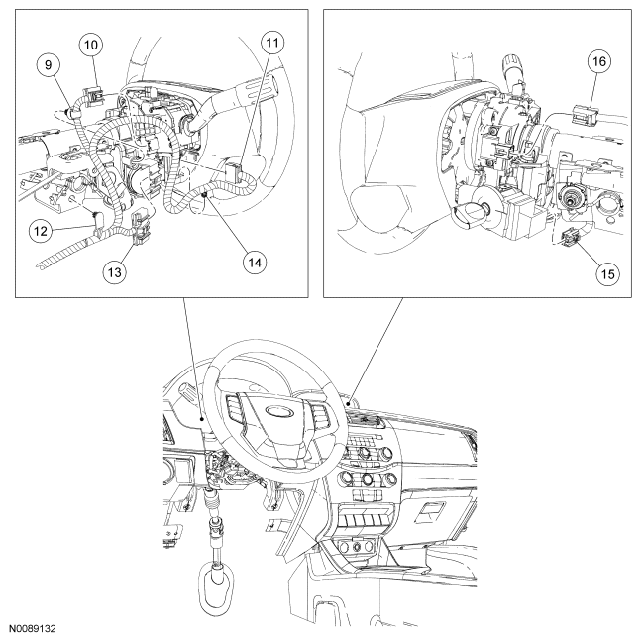

| Item | Part Number | Description |
|---|---|---|
| 9 | - | Wiring harness retainer (part of 14401) |
| 10 | - | Multifunction switch electrical connector (part of 14401) |
| 11 | - | Clockspring electrical connector (part of 14401) |
| 12 | - | Wiring harness retainer (part of 14401) |
| 13 | - | Ignition switch electrical connector (part of 14401) |
| 14 | - | Wiring harness retainer (part of 14401) |
| 15 | - | Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401) |
| 16 | - | Steering wheel rotation sensor electrical connector (part of 14401) |

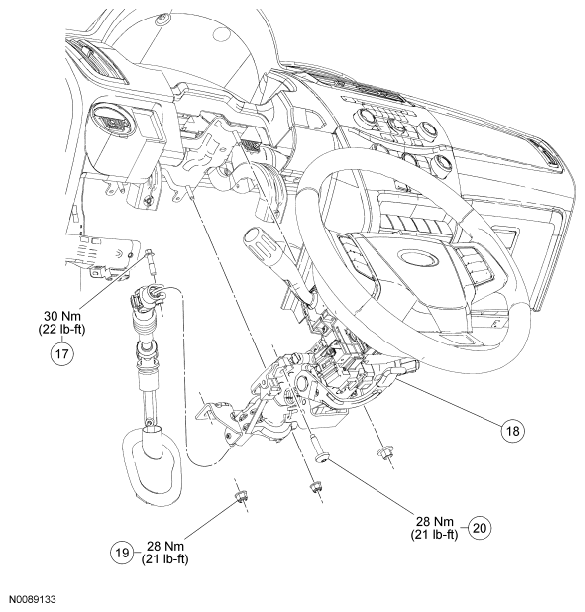

| Item | Part Number | Description |
|---|---|---|
| 17 | W712882 | Upper steering column shaft-to-steering column bolt |
| 18 | 3C529 | Steering column |
| 19 | N806423 | Steering column nut (3 required) |
| 20 | W712250 | Steering column bolt |
