2011 Ford Flex FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Subframe: Service and Repair
SUBFRAME BUSHINGS

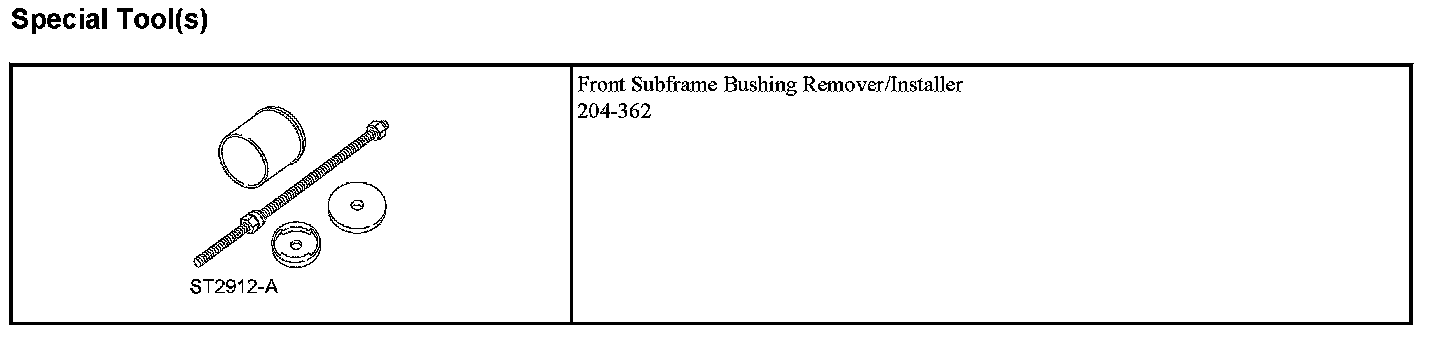

Special Tool(s):
Removal
1. Remove the front subframe. For additional information, refer to Subframe - Front.

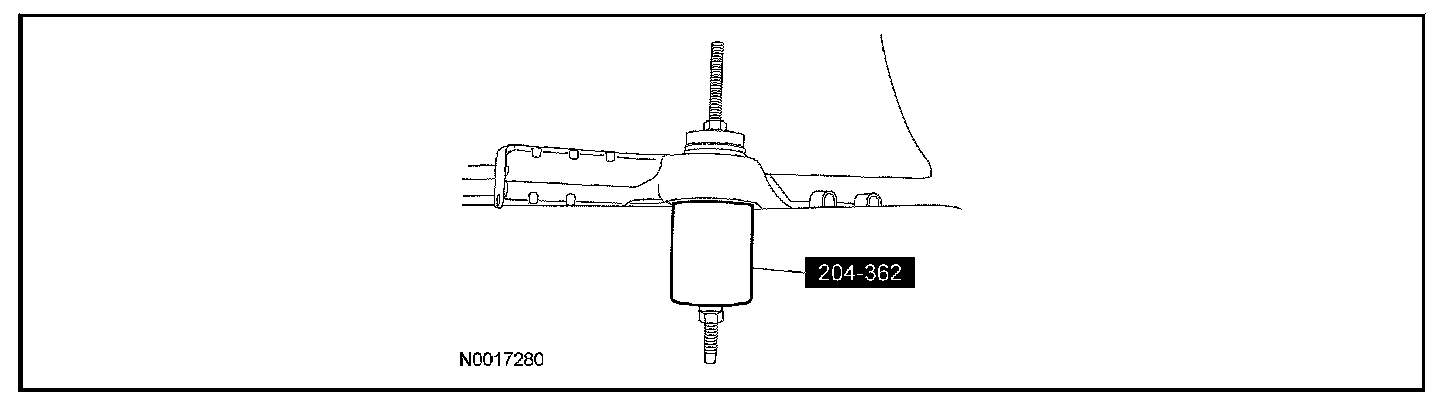

2. Assemble the Front Subframe Bushing Remover/Installer to the front subframe.
3. Press out the subframe bushing.
Installation
1. Assemble the Front Subframe Bushing Remover/Installer to the front subframe with the new subframe bushing.

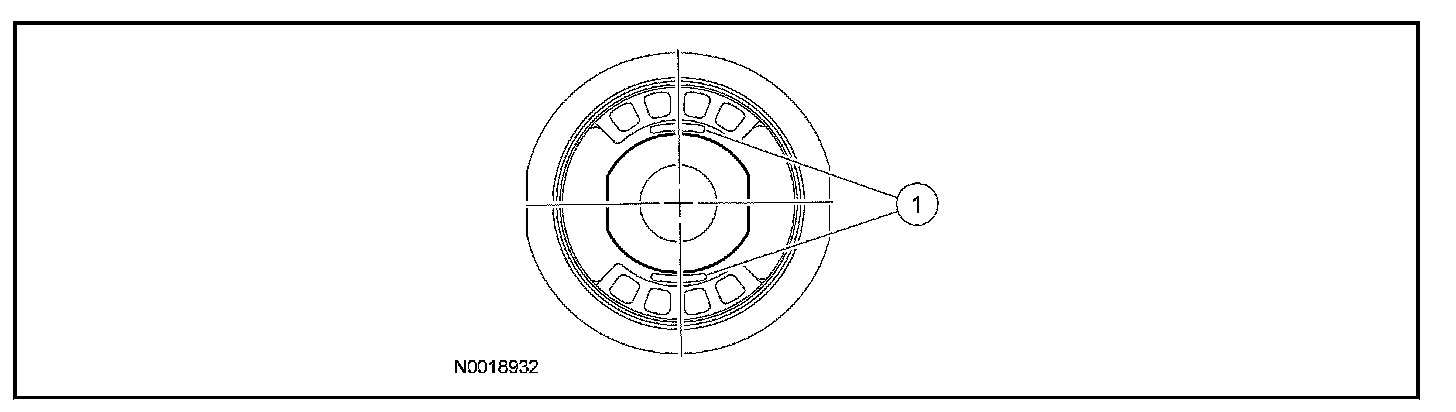

2. Align the subframe bushing to the front subframe.
1 Align the subframe bushing so that the voids are oriented in the fore-aft position.

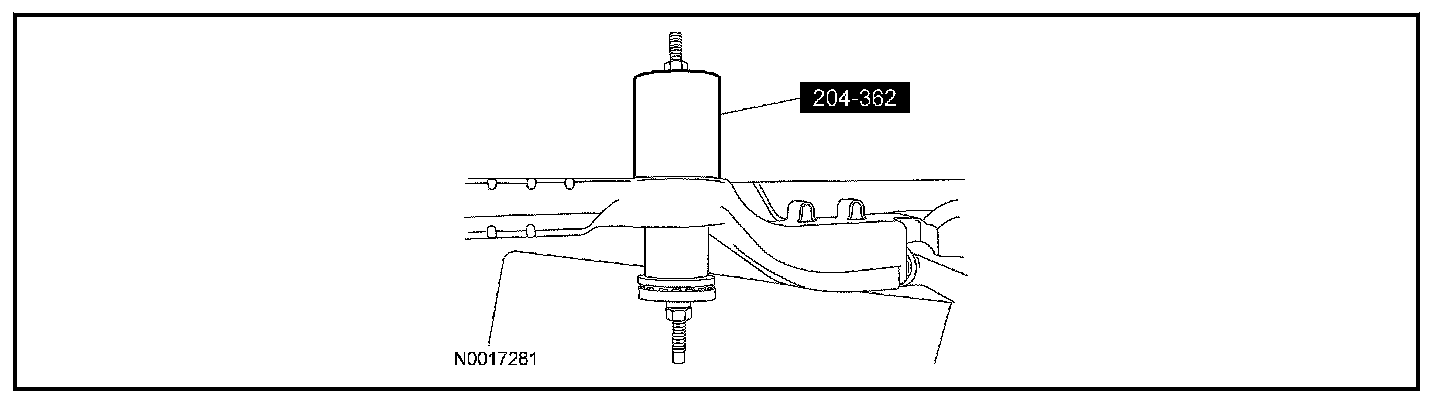

3. Press the new subframe bushing into the front subframe.
4. Install the front subframe. For additional information, refer to Subframe - Front.
