2011 Ford Flex AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Alignment Specifications

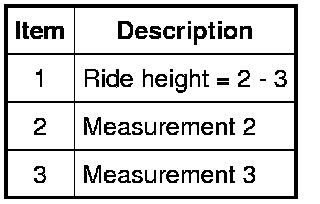

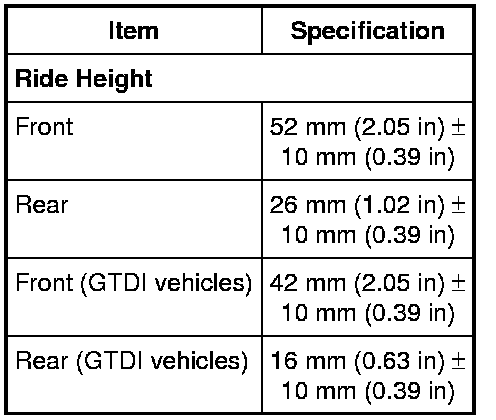

Ride Height Specifications

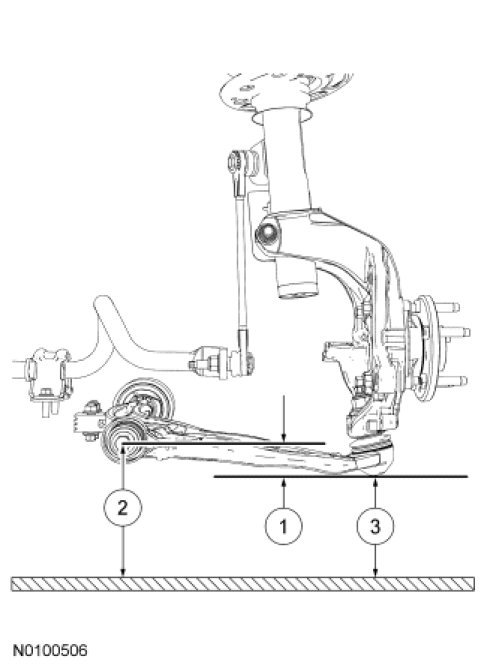

Measuring Points - Front

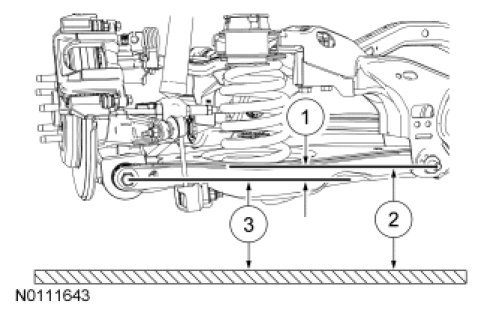

Measuring Points - Rear
NOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. The vehicle should have a full tank of fuel.

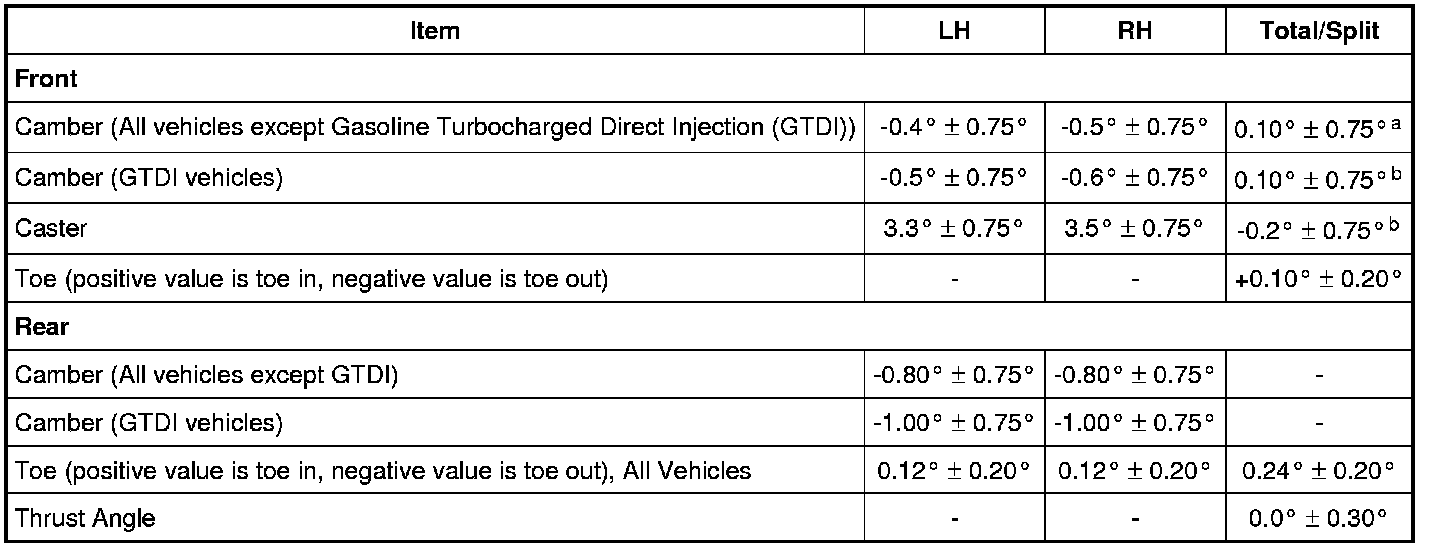

Alignment Specifications
a Camber Total/Split = LH Camber - RH Camber
b Caster Total/Split = LH Caster - RH Caster

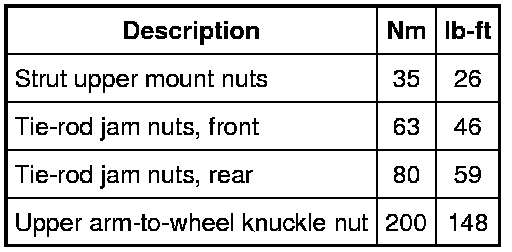

Torque Specifications
Factory Service Tools
