2011 Ford Flex AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Service and Repair
Powertrain Control Module (PCM)
Removal
1. NOTE: PCM installation DOES NOT require new keys or programming of keys.
Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to Module Configuration Testing and Inspection.
2. Remove the cowl panel grille. For additional information, refer to Front End Body Panels Service and Repair.

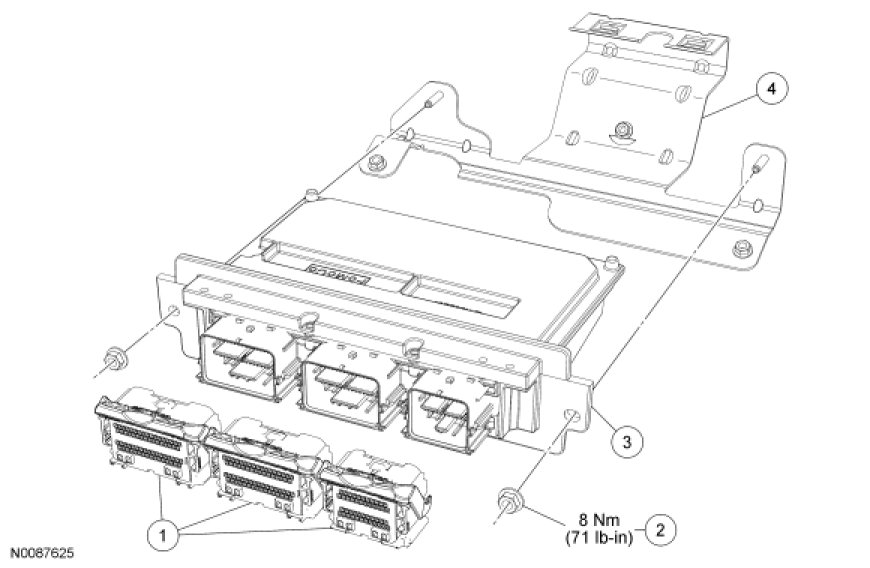

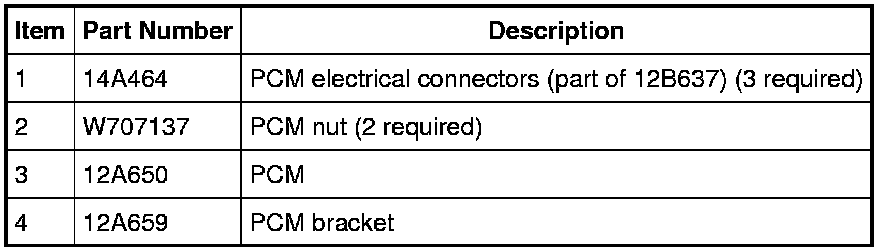

3. Disconnect the 3 PCM electrical connectors.
4. Remove the 2 nuts and the PCM.
Installation
All vehicles
1. Install the PCM and the 2 nuts.
- Tighten to 8 Nm (71 lb-in).
2. Connect the 3 PCM electrical connectors.
3. Install the cowl panel grille. For additional information, refer to Front End Body Panels Service and Repair.
4. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to Module Configuration Testing and Inspection.
5. Reprogram the Passive Anti-Theft System (PATS). Carry out the Parameter Reset procedure. For additional information, refer to Anti-Theft - Passive Anti-Theft System (PATS) Passive Anti-Theft System (PATS) Parameter Reset.
GTDI vehicles
6. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
