2011 Ford Fiesta L4-1.6LFACTORY OEM SERVICE PROCEDURE
Ignition Cable: Service and Repair
Spark Plug Wires
Removal and Installation
1. Detach the spark plug wire if routed through another spark plug wire.
2. NOTICE: Spark plug wires must be connected correctly. For additional information, refer to the Coil Terminal-to-Cylinder Relationship illustration in the Description and Operation, Engine Ignition information. Failure to follow this instruction may result in poor engine performance. Engine Ignition
NOTICE: Do not pull on the spark plug wire as it may separate from the spark plug wire connector inside the spark plug wire boot.

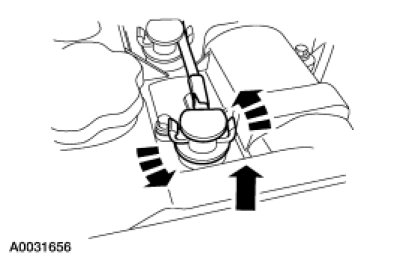

Disconnect the spark plug wires from the spark plugs by slightly twisting while pulling upwards.

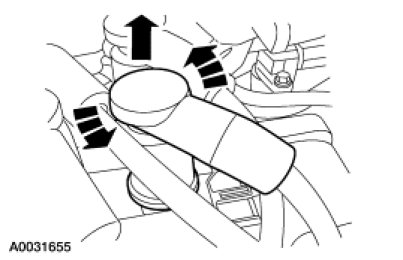

3. Disconnect the spark plug wires from the ignition coil by slightly twisting while pulling upward.
4. Remove the spark plug wires.
5. NOTE: Wipe the coil towers with a clean cloth dampened with soap and water. Remove any soap film and dry with compressed air. Inspect for cracks, carbon tracking and dirt.
To install, reverse the removal procedure.

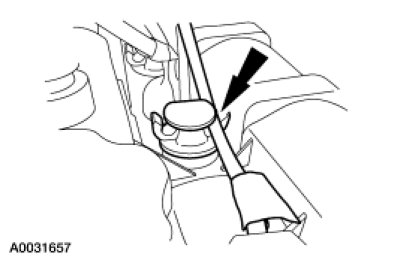

- Apply silicone dielectric compound to the locations shown.
