2011 Ford Fiesta L4-1.6LFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Service and Repair
Powertrain Control Module (PCM)
Removal
1. NOTE: PCM installation DOES NOT require new keys or programming of keys, only a Parameter Reset of the Passive Anti-Theft System (PATS).
Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to Module Configuration Programmable Module Installation (PMI).

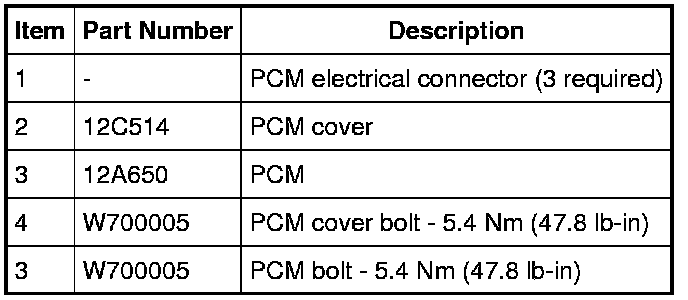

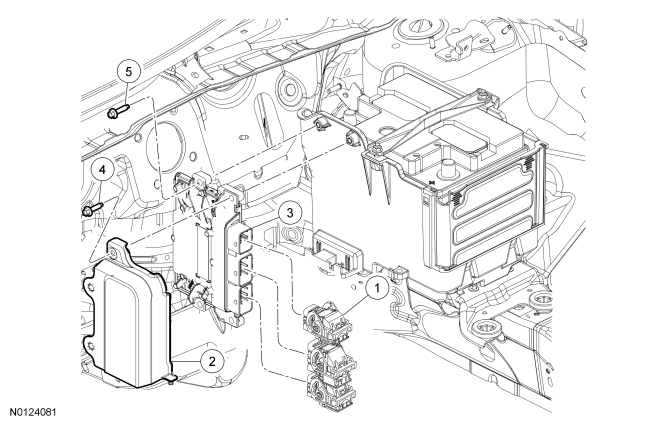

2. Remove the bolt and the PCM cover.
3. Disconnect the 3 PCM electrical connectors.
4. Remove the bolt and the PCM.
Installation
1. NOTICE: The PCM and PCM cover can be easily damaged by excessive fastener torque. Do not exceed 5.4 Nm (47.8 lb-in).
Position the PCM and install the bolt.
- Tighten to 5.4 Nm (47.8 lb-in).
2. Connect the 3 PCM electrical connectors.
3. NOTICE: The PCM and PCM cover can be easily damaged by excessive fastener torque. Do not exceed 5.4 Nm (47.8 lb-in).
Position the PCM cover and install the bolt.
- Tighten to 5.4 Nm (47.8 lb-in).
4. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to Module Configuration Programmable Module Installation (PMI).
5. Reprogram the PATS. Carry out the Parameter Reset procedure. For additional information, refer to Anti-Theft - Passive Anti-Theft System (PATS) Key Programming.
