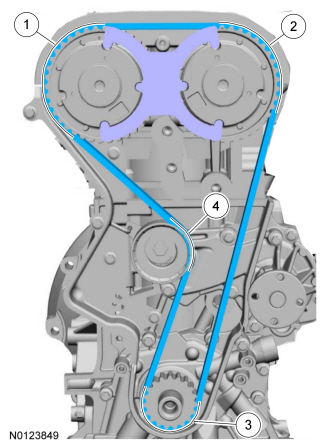

Timing Component Alignment Marks: Locations

Timing Alignment

NOTICE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Assembly of the engine requires various inspections/measurements of the engine components (engine block, crankshaft, connecting rods, pistons and piston rings). These inspections/measurements will aid in determining if the engine components will require replacement. For additional information, refer to Engine System - General Information Procedures.

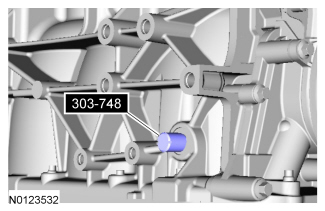

Install the Crankshaft Top Dead Center (TDC) Timing Pin and rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the Crankshaft TDC Timing Pin. The engine is now at TDC.





Install the VCT Alignment Tool.





Install the timing belt in the sequence shown.
