Seat Temperature Control Module

Seat - Exploded View, Front

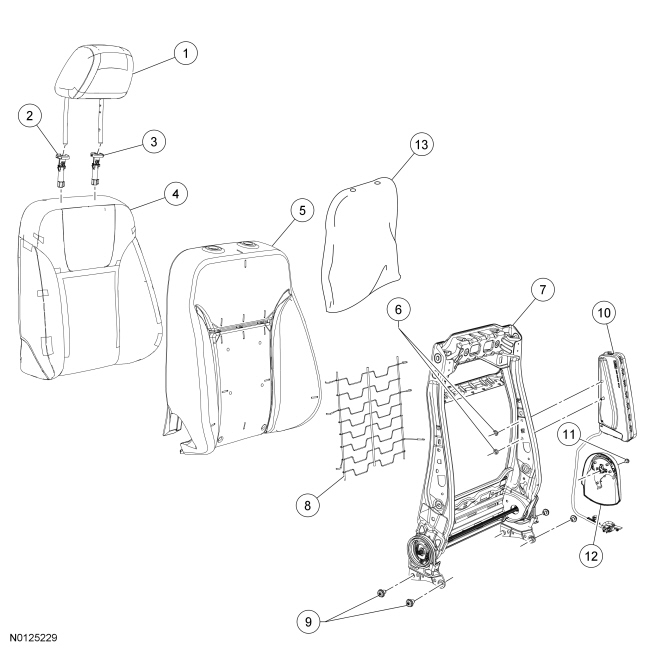

Seat Backrest

NOTE: Driver side shown, passenger similar.

NOTE: Refer to Seat Backrest - Front Seat Backrest - Front for recliner-to-seat track bolt and side air bag module nut tightening sequence and torque specification.

NOTE: Click here or refer to the on-line information to view this illustration as an interactive exploded view, requires Adobe(R) Acrobat(R) 8.0 or higher.

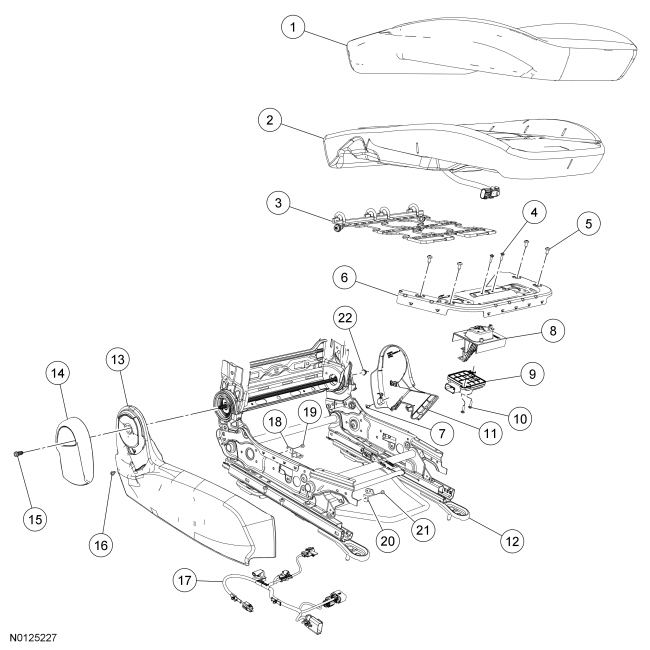

Seat Cushion - Driver

NOTICE: The heater mats are serviceable separately. A heater mat can be peeled away from a foam pad and a new one adhered in its place providing the foam is not damaged. If foam is removed during removal, a new foam pad must be installed. A heater mat cannot be reused; the 2-way tape adhesive will no longer hold the heater mat position on the foam pad causing it to shift or bunch up.

NOTE: Refer to Seat Cushion - Front Seat Cushion - Front for tightening sequence and torque specifications.

NOTE: Click here or refer to the on-line information to view this illustration as an interactive exploded view, requires Adobe(R) Acrobat(R) 8.0 or higher.

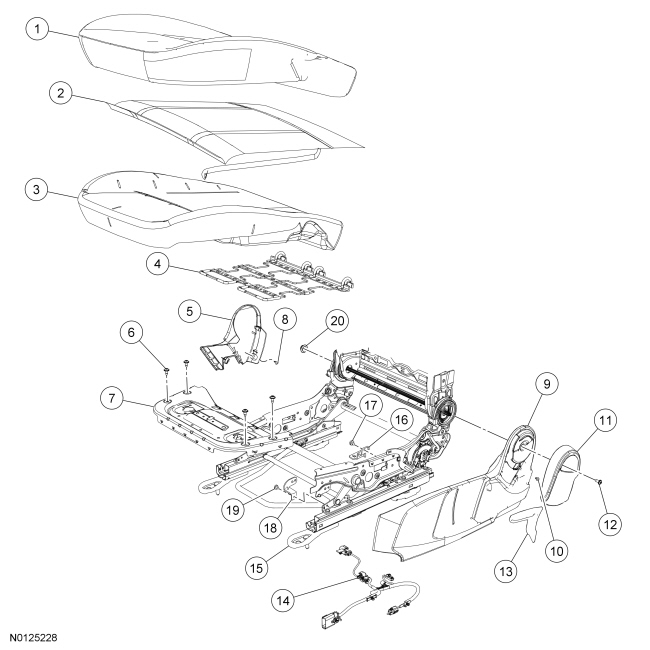

Seat Cushion - Passenger

NOTE: Refer to Seat Cushion - Front Seat Cushion - Front for tightening sequence and torque specifications.

NOTE: For passenger seat cushion Occupant Classification System (OCS) system components, refer to Supplemental Restraint System Air Bag Systems.

NOTE: The heater mats are serviceable separately. A heater mat can be peeled away from a foam pad and a new one adhered in its place providing the foam is not damaged. If foam is removed during removal, a new foam pad must be installed. A heater mat cannot be reused; the 2-way tape adhesive will no longer hold the heater mat position on the foam pad causing it to shift or bunch up.

NOTE: Click here or refer to the on-line information to view this illustration as an interactive exploded view, requires Adobe(R) Acrobat(R) 8.0 or higher.









1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
