2011 Ford Fiesta L4-1.6LFACTORY OEM SERVICE PROCEDURE
Fuel Tank Pressure Sensor

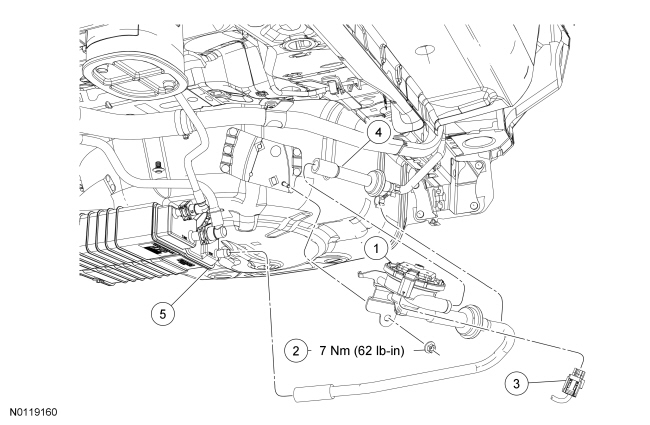

Evaporative Emission (EVAP) System Components - Exploded View

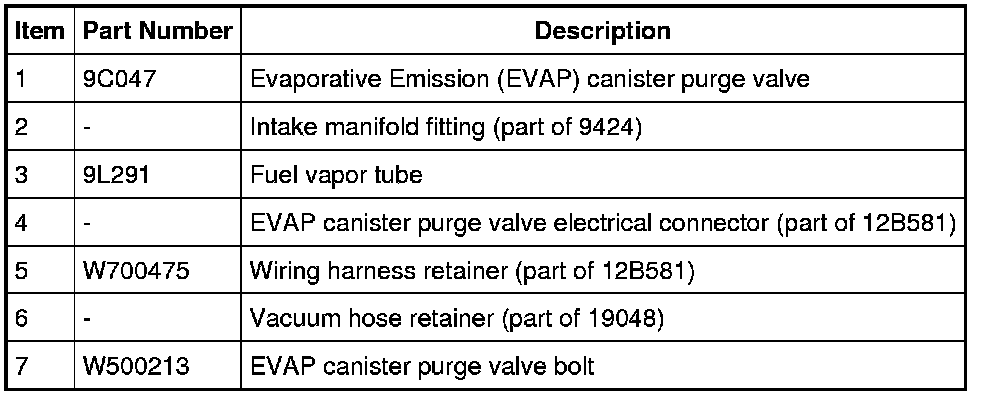

Evaporative Emission (EVAP) Canister Purge Valve

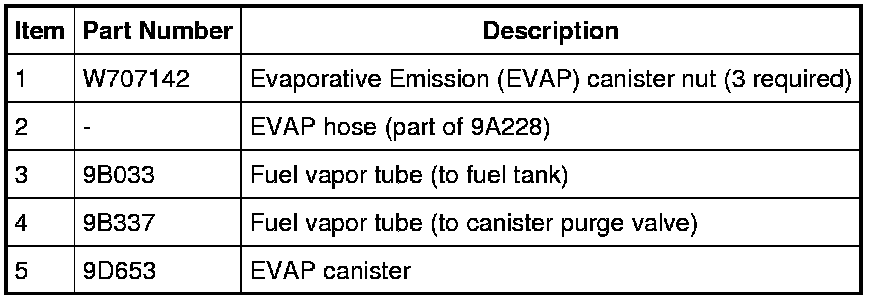

Evaporative Emission (EVAP) Canister
NOTE: Five door vehicle shown, four door vehicle similar.

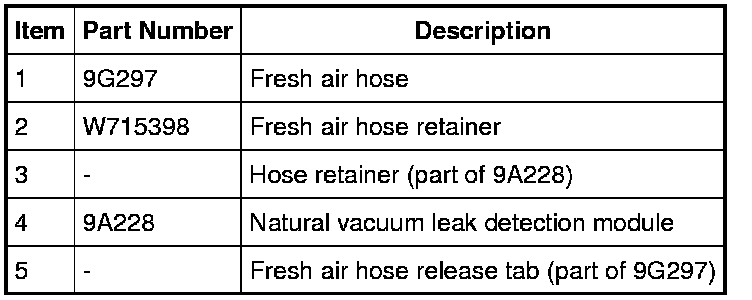

Natural Vacuum Leak Detection Module
Evaporative Emission (EVAP) Fresh Air Hose
NOTE: The LH wheel liner must be positioned aside to access the fresh air hose.
NOTE: Press the release tab to disengage the fresh air hose from the fuel filler pipe bracket.
WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE: After installing an Evaporative Emission (EVAP) canister or Evaporative Emission (EVAP) canister purge valve, carry out the Evaporative Emission System Leak Test. For additional information, refer to Evaporative Emission System Leak Test Testing and Inspection.
1. Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
