2011 Ford Fiesta L4-1.6LFACTORY OEM SERVICE PROCEDURE

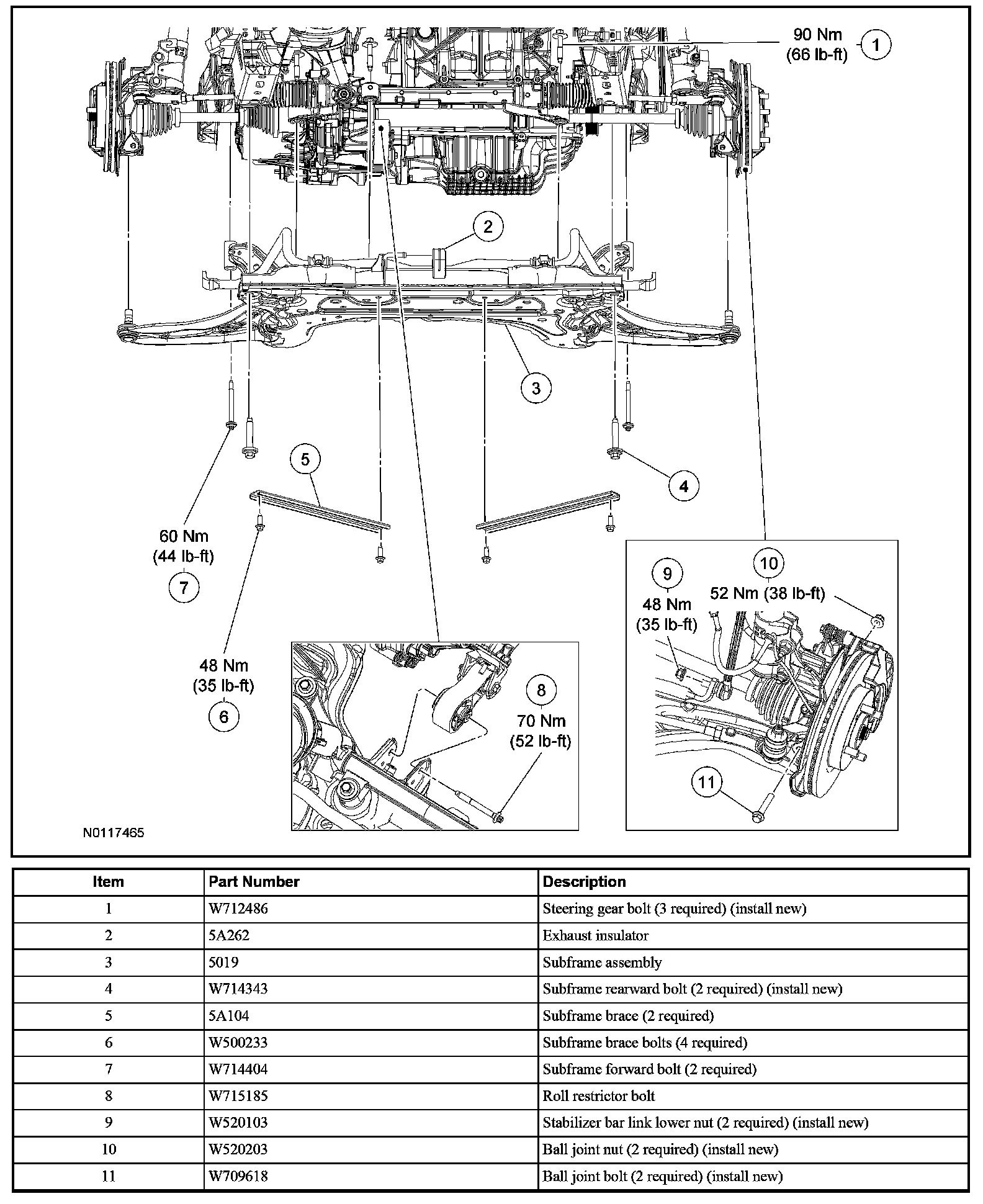

Subframe and Components - Exploded View
Subframe and Components - Exploded View
Subframe and Components - Exploded View:
NOTICE:
- Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure may result in major service expense. New parts must be installed with the same part numbers or equivalent part, if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to make sure correct retention of these parts.
- Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.
NOTE:
- Support the subframe assembly using a suitable transmission jack.
- Support the steering gear using mechanic's wire.
1. Refer to the exploded view(s) and any Warnings, Notices, Materials, Specifications and Special Tools. Items in the exploded view may not be listed in the order of removal.
2. When installing the rearward subframe bolts.
- Stage 1: Tighten to 100 Nm (74 lb-ft).
- Stage 2: Tighten an additional 240°.
