2011 Ford Explorer XLT, FWDFACTORY OEM SERVICE PROCEDURE

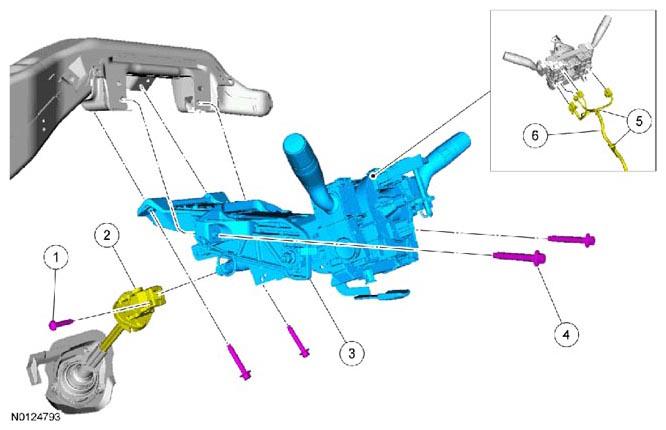

Exploded View
STEERING COLUMN PARTS DESCRIPTION CHART
| Item | Service Part Number | Description | Tool Number | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W714878 | Steering column shaft-to-steering column bolt | - | - | 26 Nm (19 lb-ft) |
| 2 | 3B676 | Steering column shaft | - | - | - |
| 3 | 3C529 | Steering column | - | - | - |
| 4 | W712833 | Steering column bolt (4 required) | - | - | 26 Nm (19 lb-ft) |
| 5 | 14401 | Wiring harness | - | - | - |
| 6 | - | Wiring harness retainers (2 required) (part of 14401) | - | - | - |
