2011 Ford Explorer FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Power Window Switch: Service and Repair
Window Control Switch

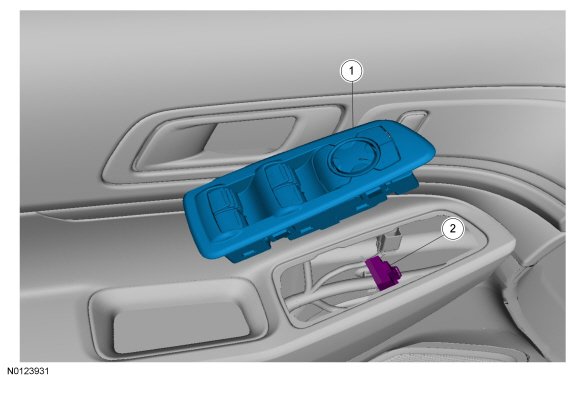

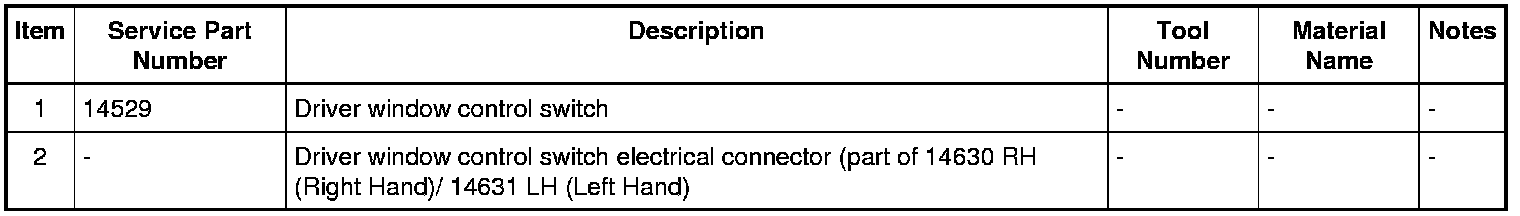

Exploded View
Removal
1. Using a non-marring tool, carefully pry the rear of the switch bezel upward to release the rear clip.
2. Disconnect the electrical connector(s).
Installation
1. To install, reverse the removal procedure.
