2011 Ford Explorer FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor: Service and Repair
Crankshaft Position (CKP) Sensor

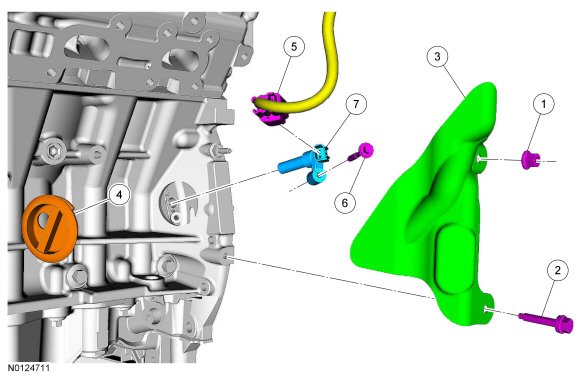

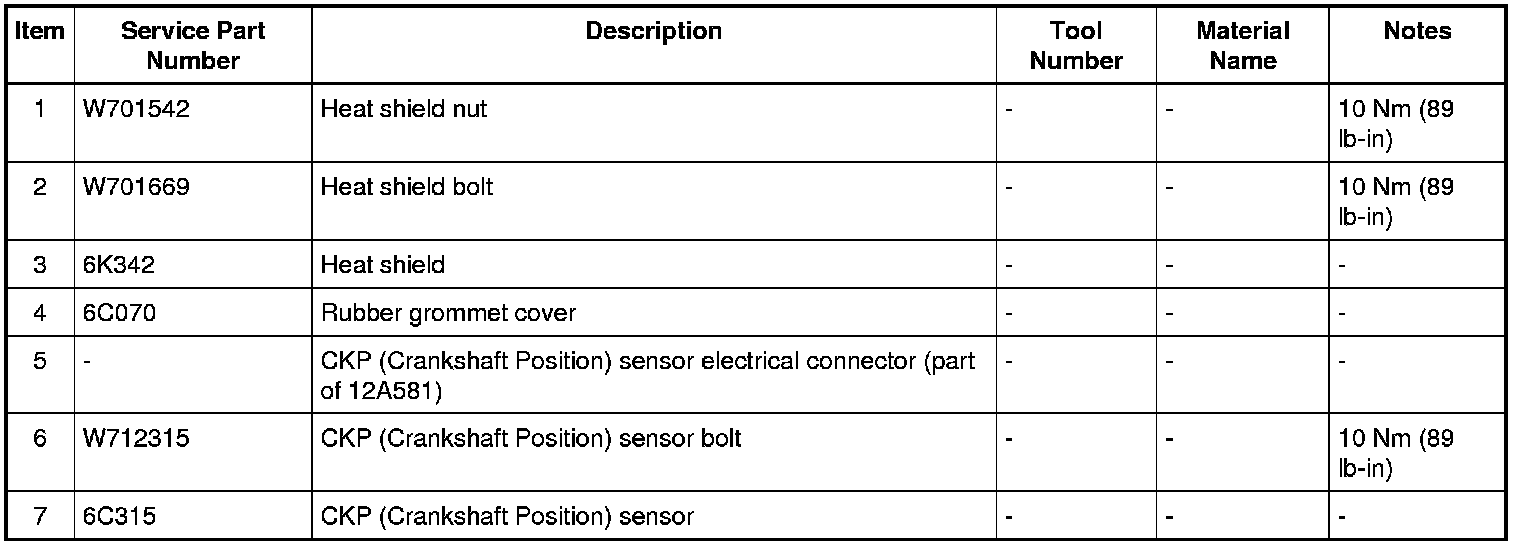

Exploded View
Removal
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, REFER to Lifting Points Service and Repair.
2. Remove the nut, bolt and the heat shield.
3. Remove the rubber grommet cover.
4. Remove the bolt and the CKP (Crankshaft Position) sensor from the engine block.
5. Disconnect the CKP (Crankshaft Position) sensor electrical connector and remove the CKP (Crankshaft Position) sensor.
Installation
1. Connect the CKP (Crankshaft Position) sensor electrical connector.
2. Install the CKP (Crankshaft Position) sensor and bolt.
- Tighten to 10 Nm (89 lb-in).
3. Install the rubber grommet cover.
4. Install the heat shield and the nut and bolt.
- Tighten to 10 Nm (89 lb-in).
