2011 Ford Explorer FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Climate Control - EMTC
Heating Ventilation Air Conditioning (HVAC) Module

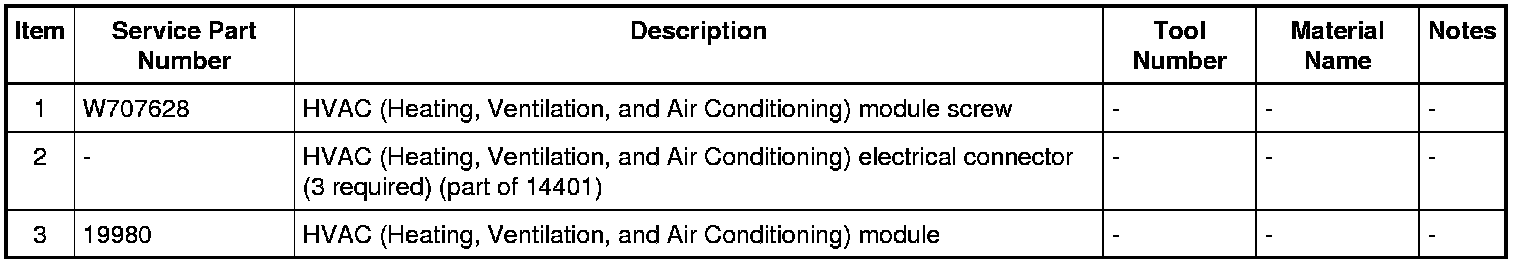

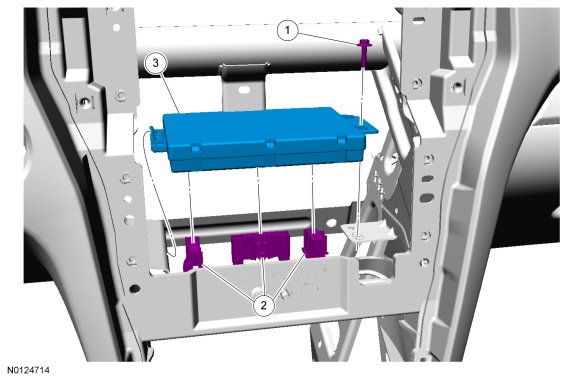

Exploded View
Removal
1. Remove the ACM (Audio Control Module). REFER to Audio Control Module (ACM) Information and Entertainment Systems - Premium.
2. Remove the HVAC (Heating, Ventilation, and Air Conditioning) module.
1. Remove the HVAC (Heating, Ventilation, and Air Conditioning) module screw.
2. Disconnect the HVAC (Heating, Ventilation, and Air Conditioning) module electrical connectors.
3. Remove the HVAC (Heating, Ventilation, and Air Conditioning) module.
Installation
1. Install the HVAC (Heating, Ventilation, and Air Conditioning) module.
1. Install the HVAC (Heating, Ventilation, and Air Conditioning) module.
2. Connect the HVAC (Heating, Ventilation, and Air Conditioning) module electrical connectors.
3. Install the HVAC (Heating, Ventilation, and Air Conditioning) module screw.
2. Install the ACM (Audio Control Module). REFER to Audio Control Module (ACM) Information and Entertainment Systems - Premium.
