2011 Ford Explorer FWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Front Subframe Mount: Service and Repair
Subframe Bushings

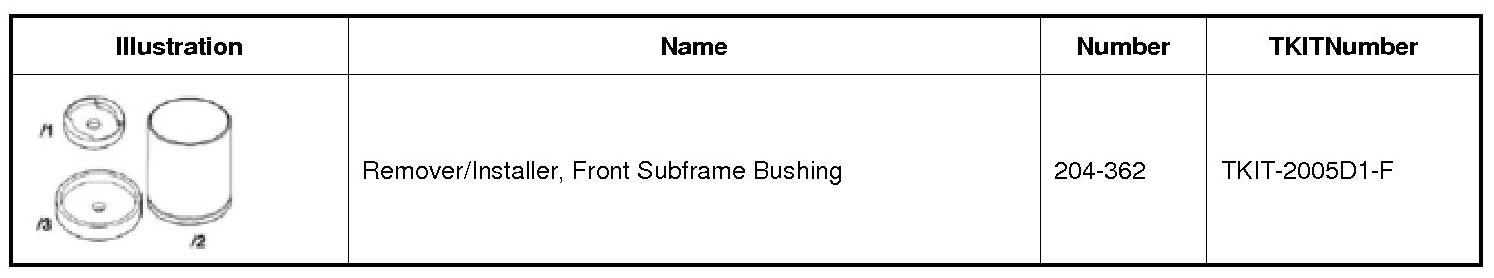

Special Tool(s)
Removal
1. Remove the front subframe. REFER to Subframe - Front Service and Repair.
2. Assemble the 204-362 to the front subframe.
3. Press out the subframe bushing.
Installation
1. Assemble the 204-362 to the front subframe with the new subframe bushing.
2. Align the subframe bushing to the front subframe.
1. Align the subframe bushing so that the voids are oriented in the fore-aft position.
3. Press the new subframe bushing into the front subframe.
4. Install the front subframe. REFER to Subframe - Front Service and Repair.
