2011 Ford Explorer AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
All-Wheel Drive (AWD) Relay Module
All-Wheel Drive (AWD) Relay Module

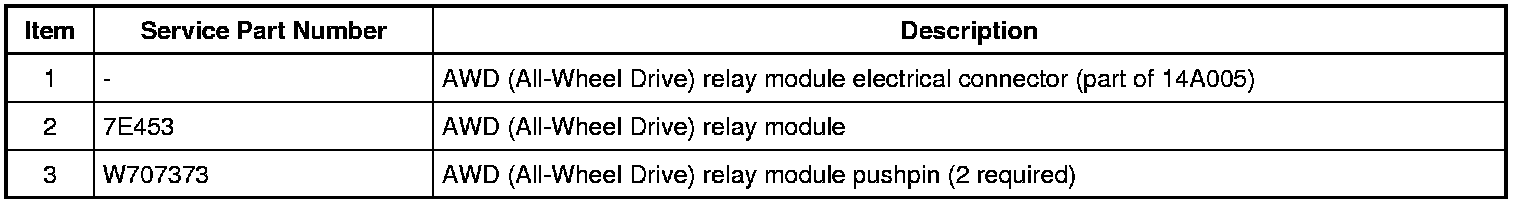

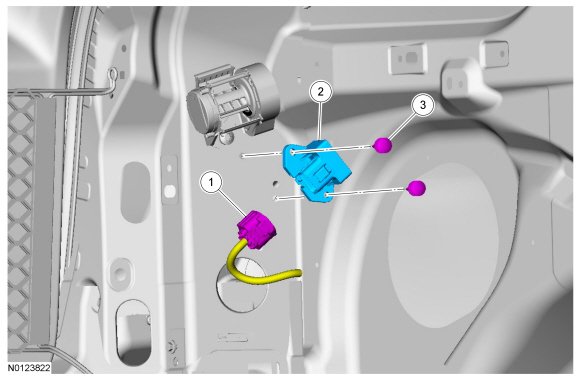

Exploded View
Removal
1. Remove the LH (Left Hand) quarter trim panel. REFER to Removal Quarter Trim Panel - With Inflatable Safety Belts with inflatable safety belts or REFER to Removal Quarter Trim Panel - Without Inflatable Safety Belts without inflatable safety belts.
2. Disconnect the AWD (All-Wheel Drive) relay module electrical connector.
3. Remove the 2 pushpins and the AWD (All-Wheel Drive) relay module.
Installation
1. Install the AWD (All-Wheel Drive) relay module and the 2 pushpins.
2. Connect the AWD (All-Wheel Drive) relay module electrical connector.
3. Install LH (Left Hand) quarter trim panel. REFER to Installation Quarter Trim Panel - With Inflatable Safety Belts with inflatable safety belts or REFER to Installation Quarter Trim Panel - Without Inflatable Safety Belts without inflatable safety belts.
