2011 Ford Explorer AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Steering Column Control Module: Service and Repair
Steering Column Control Module (SCCM)

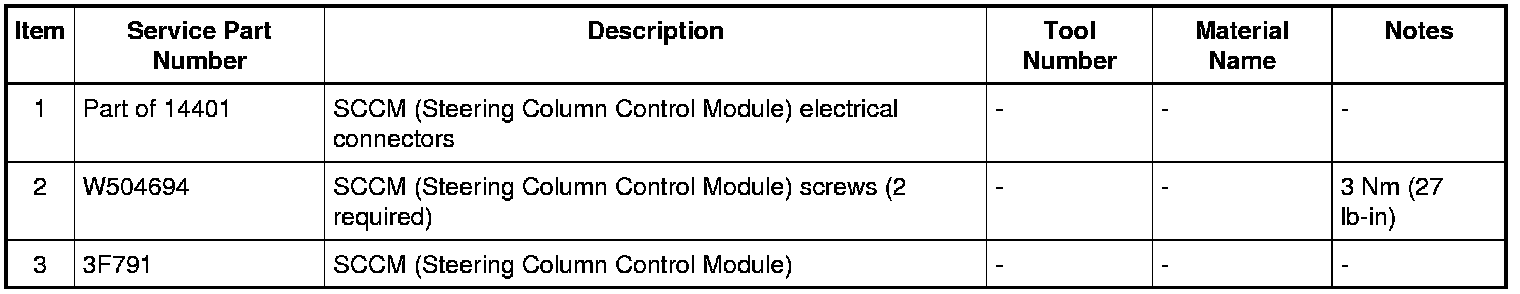

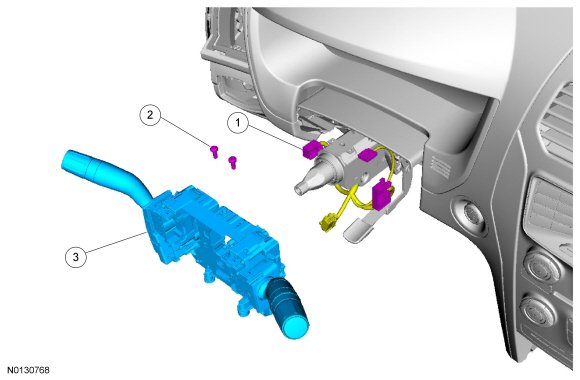

Exploded View
Removal
1. Remove the clockspring. REFER to Clockspring Service and Repair.
2. Disconnect the 3 SCCM (Steering Column Control Module) electrical connectors.
3. Remove the 2 SCCM (Steering Column Control Module) screws.
- To install, tighten to 3 Nm (27 lb-in).
4. Push the SCCM (Steering Column Control Module) locking tab upward and remove the SCCM (Steering Column Control Module).
Installation
1. To install, reverse the removal procedure.
