2011 Ford Explorer AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Body Repairs
Body Repairs

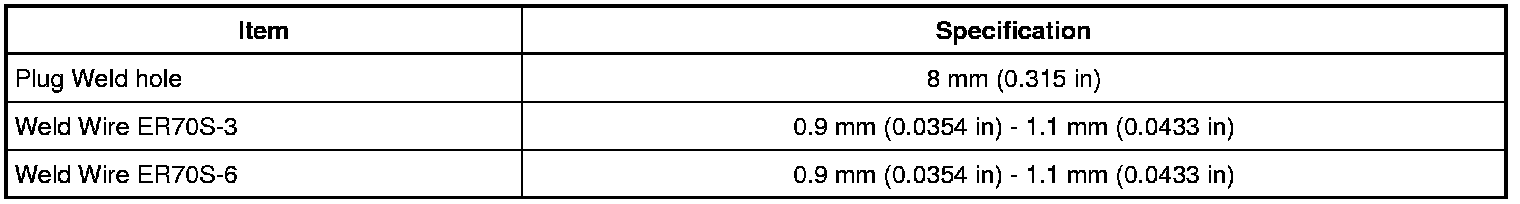

General Specifications
General Specifications
Weld Nugget Chart

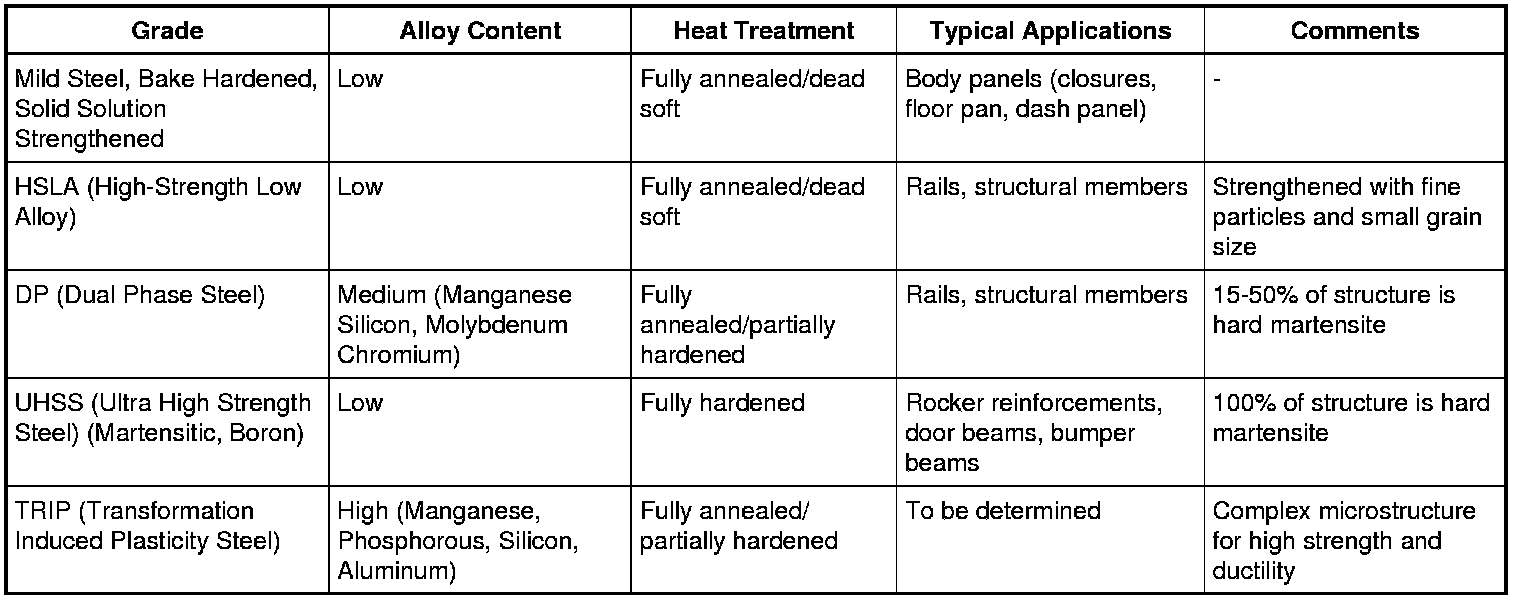

Descriptions of Ford Steel Families

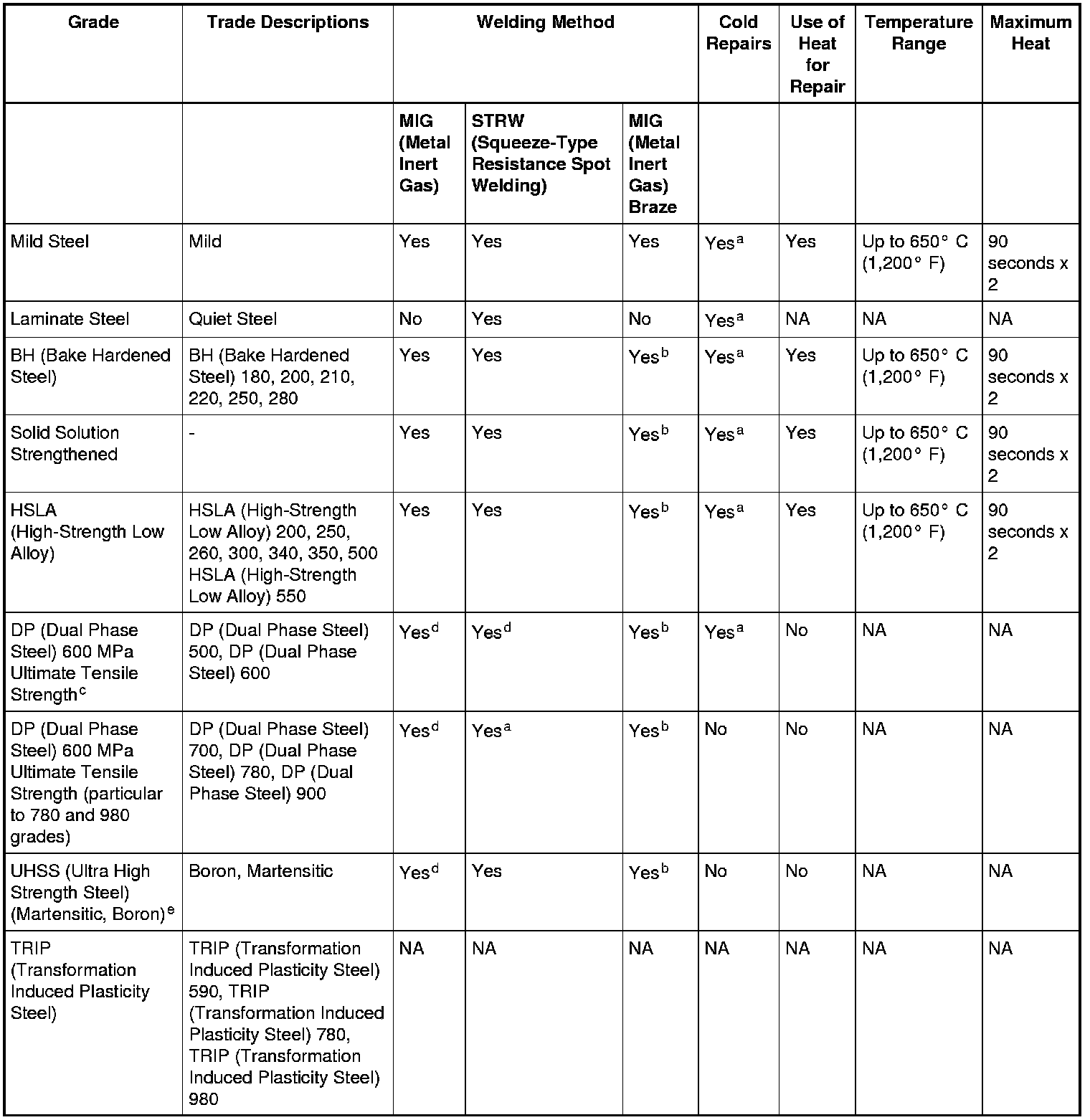

Ford Recommended Steel Repairability Matrix
a Cold repairs can be performed if damage excludes kinks. May section only if approved procedure in diagnostic/repair information.
b MIG (Metal Inert Gas) braze allowed for non-structural applications only.
c Dual phase steels DP 700, DP 780 and DP 980 must be replaced at factory joints, no sectioning unless approved procedure in diagnostic/repair information.
d For DP 980 and Boron use MIG (Metal Inert Gas) plug welding only, no stitch welding.
e Boron and UHSS (Ultra High Strength Steel)-Mortensite components must be replaced at factory joints, no sectioning allowed.

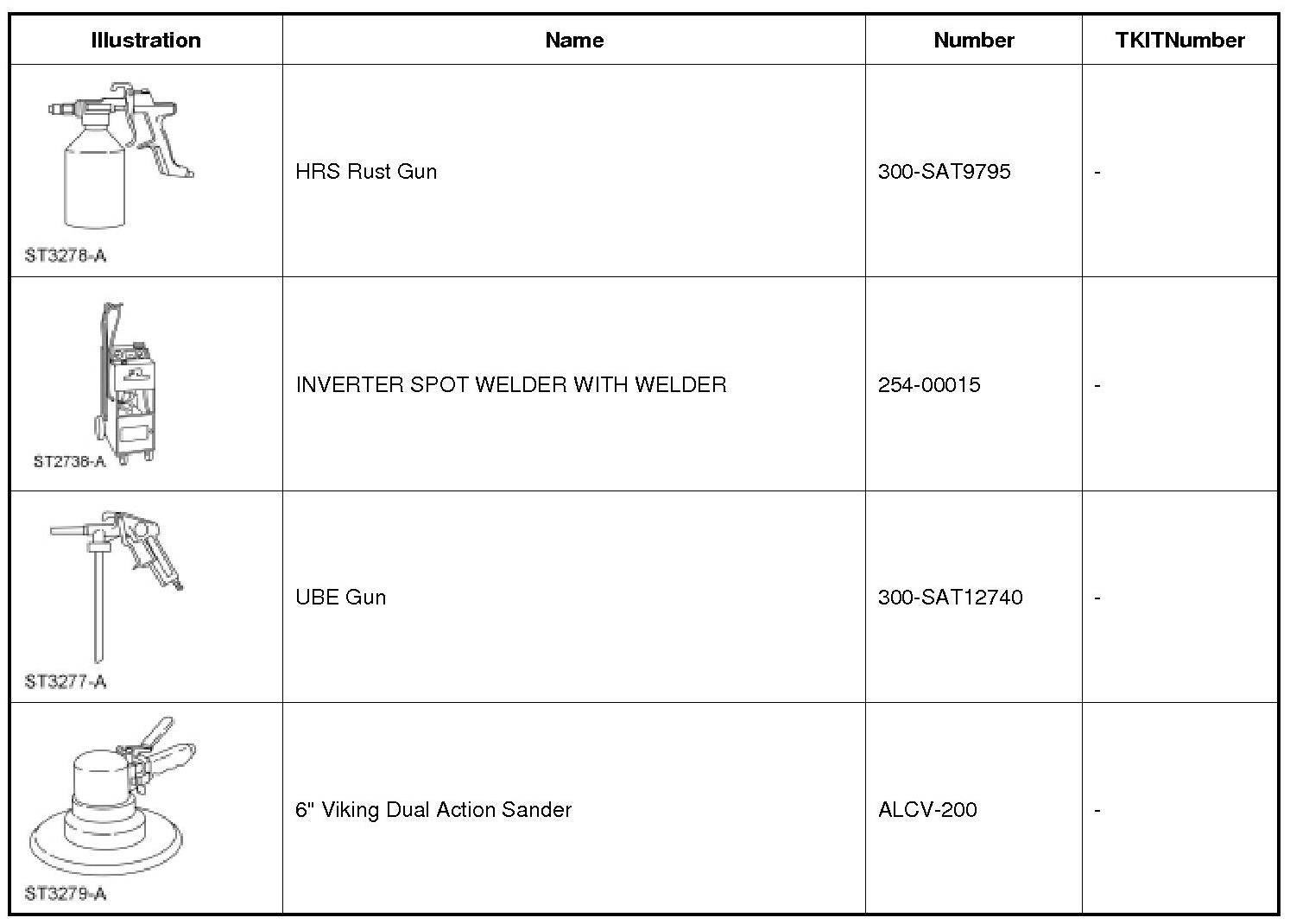

Factory Service Tools
