2011 Ford Explorer AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Camshaft Position Sensor: Service and Repair
Camshaft Position (CMP) Sensor - 3.5L Ti-VCT

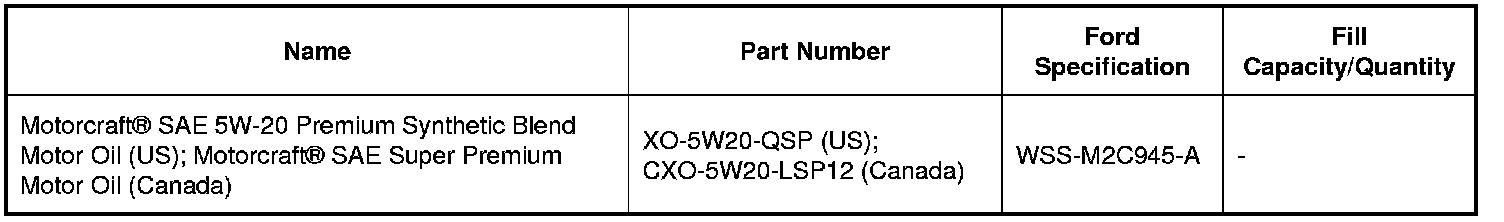

Material(s)

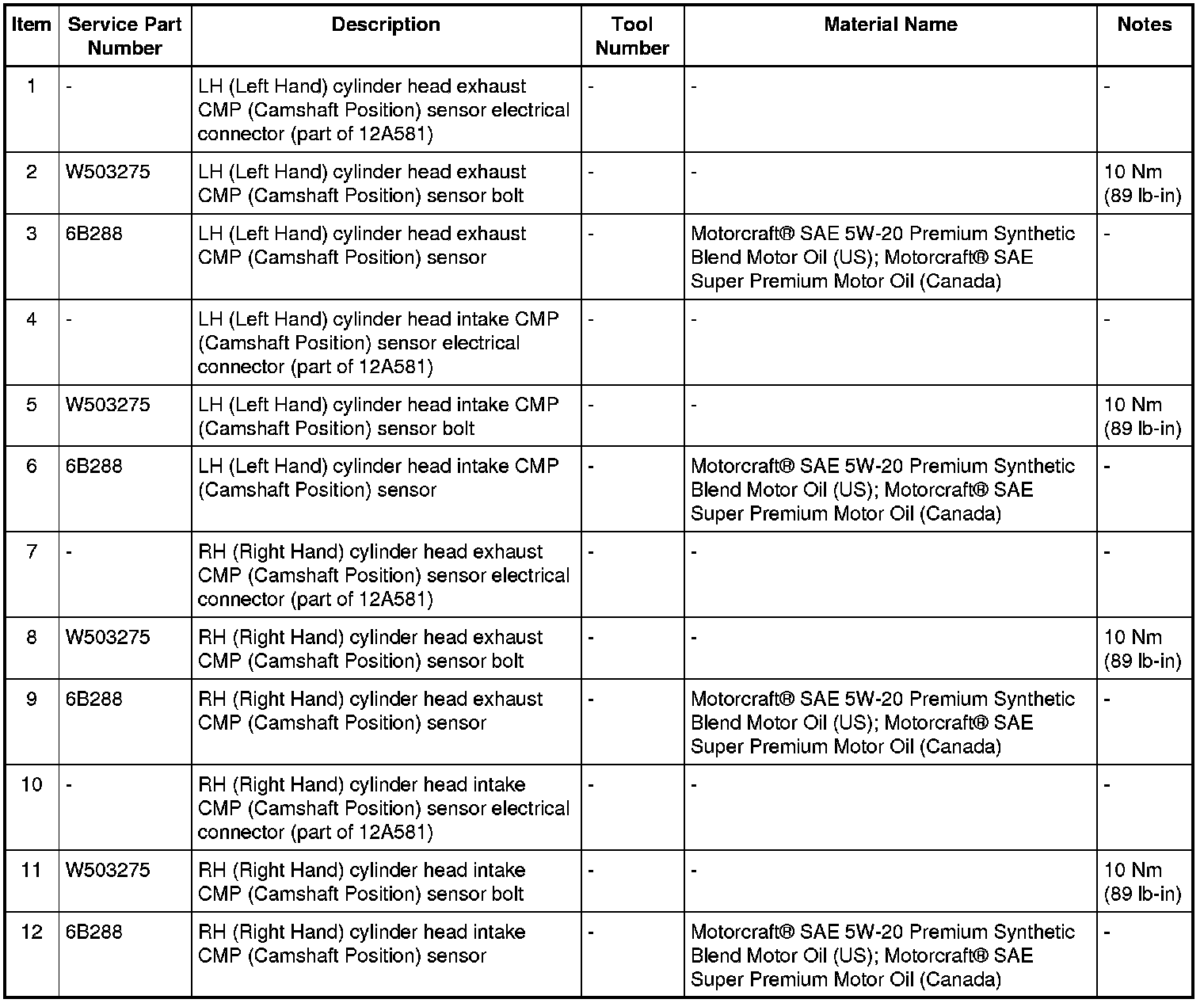

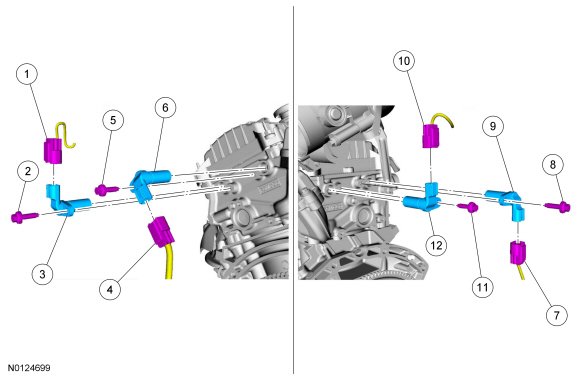

Exploded View
Removal
1. Remove the ACL (Air Cleaner) outlet pipe. REFER to Intake Air System Components - Exploded View [1][2]Diagrams.
2. Disconnect the CMP (Camshaft Position) electrical connector.
3. Remove the bolt and the CMP (Camshaft Position) sensor.
Installation
1. NOTE: Lubricate the CMP (Camshaft Position) sensor O-ring seal with clean engine oil before installing the CMP (Camshaft Position) sensor.
Install the CMP (Camshaft Position) sensor and bolt.
- Tighten to 10 Nm (89 lb-in).
2. Connect the CMP (Camshaft Position) electrical connector.
3. Install the ACL (Air Cleaner) outlet pipe. REFER to Intake Air System Components - Exploded View [1][2]Diagrams.
