2011 Ford Explorer AWD V6-3.5LFACTORY OEM SERVICE PROCEDURE
Drive Belt

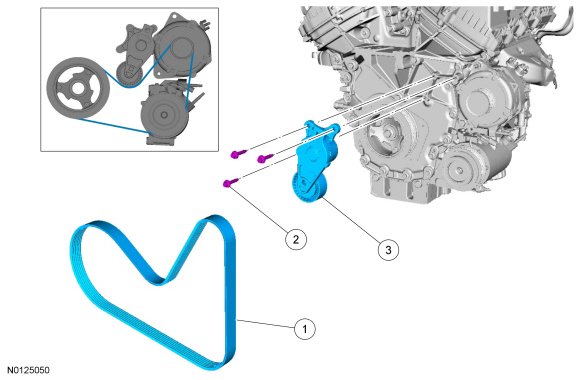

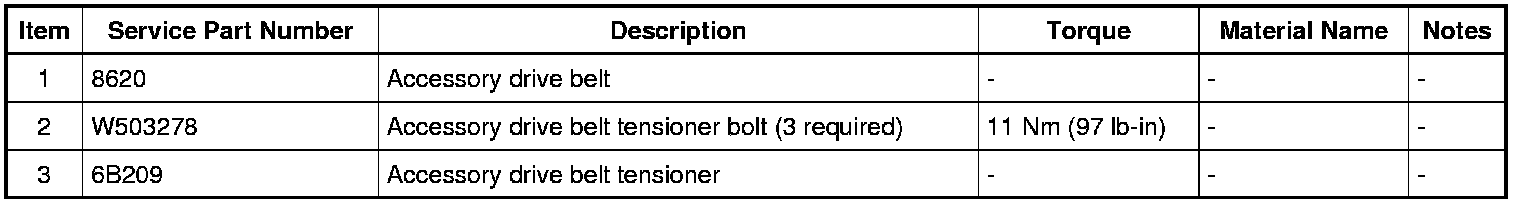

Front End Accessory Drive (FEAD) - Exploded View
Exploded View
NOTICE: Under no circumstances should the accessory drive belt, tensioner or pulleys be lubricated as potential damage to the belt material and tensioner damping mechanism will occur. Do not apply any fluids or belt dressing to the accessory drive belt or pulleys.
