2011 Ford Expedition 4WD V8-5.4LFACTORY OEM SERVICE PROCEDURE
Control Module: Service and Repair
4X4 Control Module
Removal and Installation

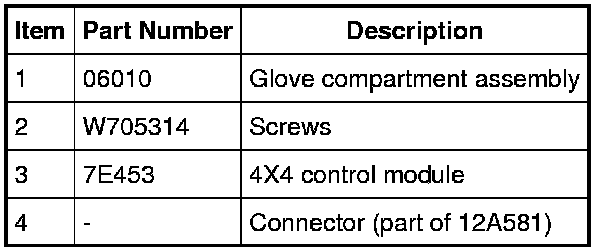

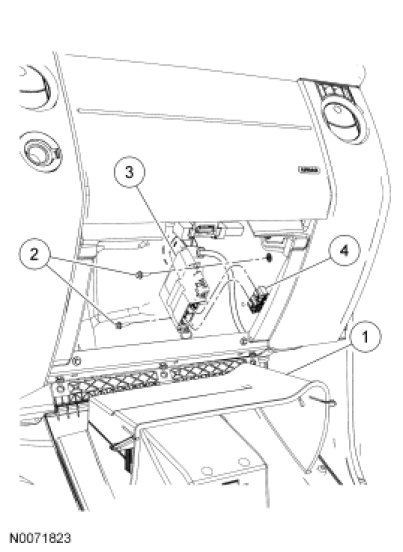

1. Lower the glove compartment assembly to gain access.
2. Remove the two 4X4 control module screws.
3. Disconnect the electrical connectors.
4. Remove the 4X4 control module.
5. To install, reverse the removal procedure.
