2011 Ford Expedition 2WD V8-5.4LFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Service and Repair

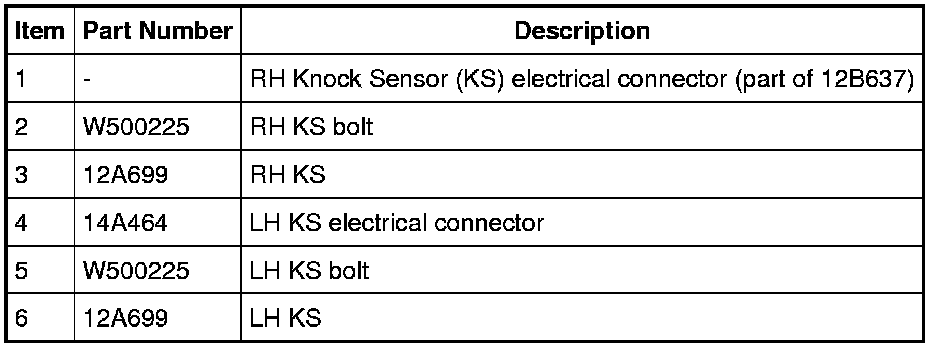

Knock Sensor (KS)
Removal and Installation

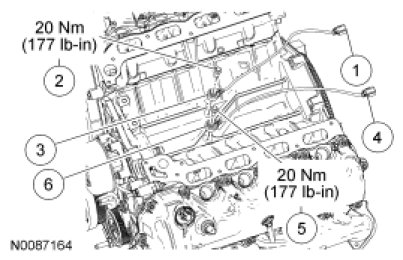

1. Remove the intake manifold. For additional information, refer to Engine - 5.4L (3V) Removal and Replacement.
2. Disconnect the Knock Sensor (KS) electrical connectors.
3. Remove the 2 bolts and the 2 KS.
- To install, tighten to 20 Nm (177 lb-in).
4. To install, reverse the removal procedure.
