2011 Ford Expedition 2WD V8-5.4LFACTORY OEM SERVICE PROCEDURE
Engine Temperature Sensor: Service and Repair
Cylinder Head Temperature (CHT) Sensor
Removal and Installation
1. Remove the intake manifold. For additional information, refer to Engine - 5.4L (3V) Removal and Replacement.

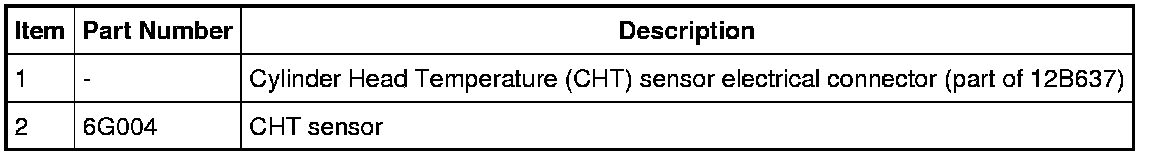

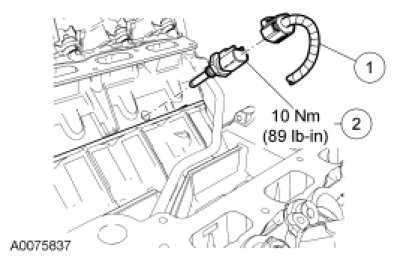

2. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.
3. Remove the CHT sensor and discard.
- To install, tighten to 10 Nm (89 lb-in).

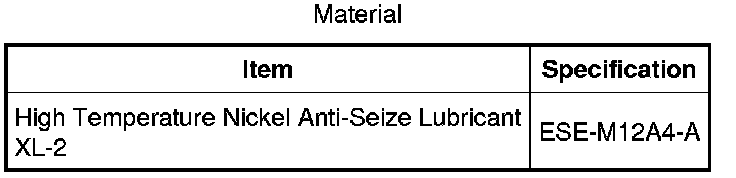

- Coat the new CHT sensor threads with high temperature nickel anti-seize lubricant prior to installation.
4. To install, reverse the removal procedure.
