2011 Ford Escape 2WD L4-2.5LFACTORY OEM SERVICE PROCEDURE

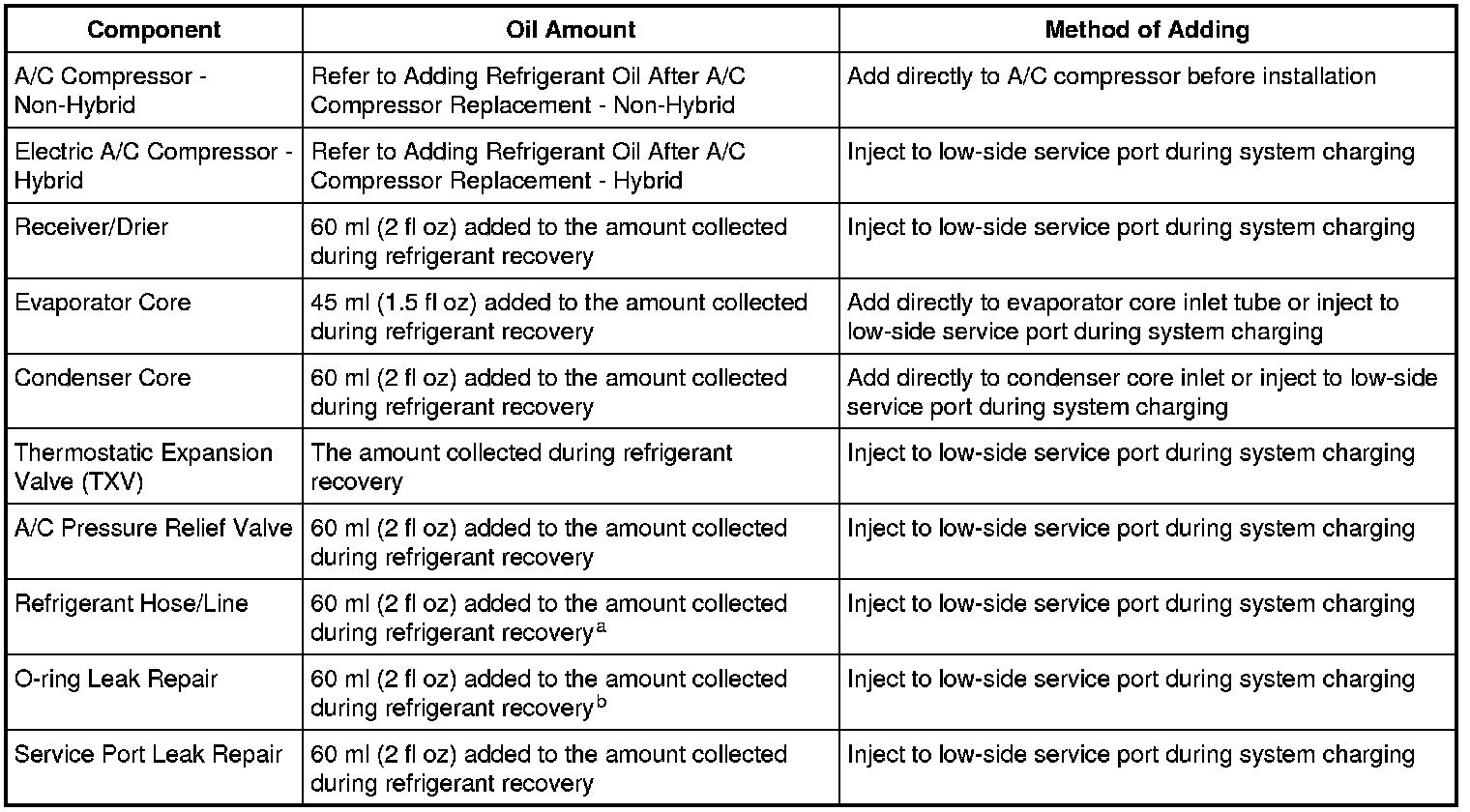

Refrigerant Oil
Item Microsoft(R) PAG Refrigerant Compressor Oil YN-12-D
Specification WSH-M1C231-B
Fill Capacity Non-Hybrid 148 ml (5 fl oz)
a If an excessive amount of refrigerant oil is lost due to a hose rupture/separation or other damage, the total system refrigerant oil capacity must be added.
b The amount specified may be used for one or multiple O-ring leak repairs. Do not multiply the refrigerant oil amount by the number of O-ring leaks being repaired.
