2011 Ford Escape 2WD L4-2.5LFACTORY OEM SERVICE PROCEDURE
Interior Lighting Module: Service and Repair
Ambient Lighting Module
Removal and Installation
Vehicles with a manual transaxle
1. Depress the parking brake pedal.
2. Shift the transmission into NEUTRAL (N).
Vehicles with an automatic transaxle

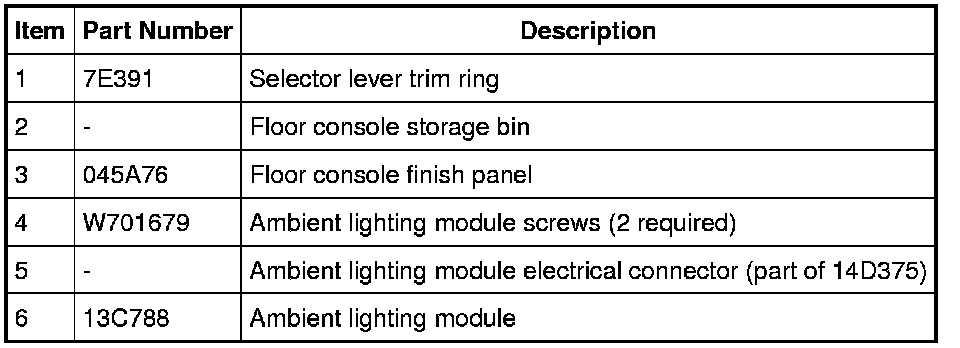

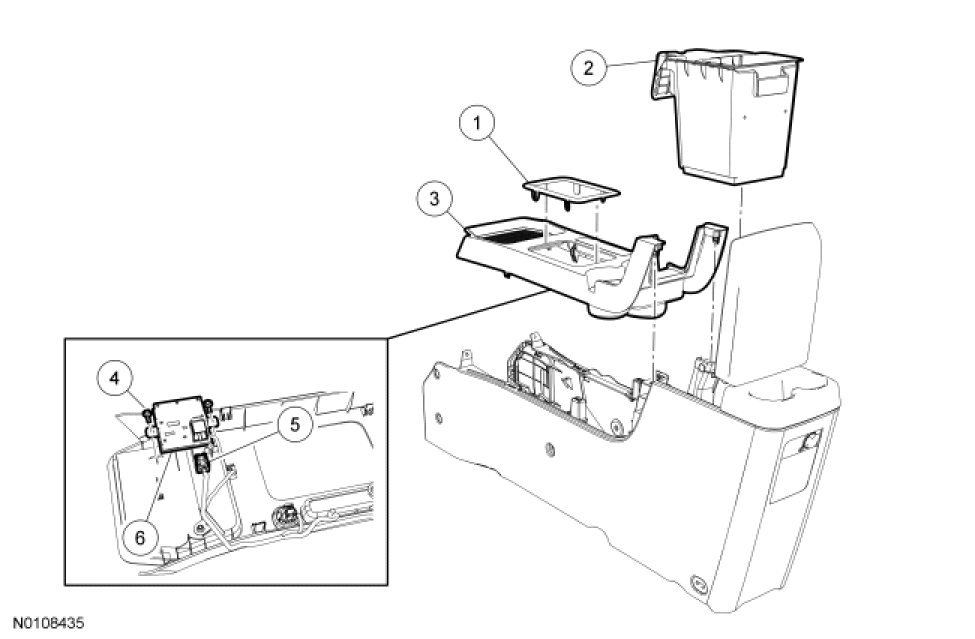

3. Remove the selector lever trim ring.
Vehicles with a manual transaxle
4. Disengage the gearshift boot trim ring.
All vehicles
5. Remove the floor console storage bin.
6. Remove the floor console finish panel.
- Disconnect the electrical connectors.
7. Remove the 2 screws and the ambient lighting module.
- Disconnect the electrical connector.
8. To install, reverse the removal procedure.
- Make sure to align the trim panel retaining clips to the retaining clip holes in the floor console.
